TFT-LCD monitor AMG-15OPGD02T5multitouch screenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, resistive touch screen, multitouch screen, PCAP touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED backlight
- Applications
- outdoor, industrial, for industrial machines, advertising, for displays, for HMI interface, for tests, wide viewing angle, for the automotive industry, multifunction, for vehicles, for medical applications, POS, high-temperature, for IoT applications, for in-line monitoring, for electronics, for CNC machines, for indoor use
- Display size
- 15"
- Resolution
- 1024 x 768
- Mounting
- rack-mount
- Other characteristics
- VGA, USB, DVI port, high-brightness, aluminum, IP65, NEMA 4
- Width
391.2 mm
(15.4016 in)- Height
265 mm
(10.4331 in)- Thickness
53.6 mm
(2.11 in)- Operating temperature
Max.: 85 °C
(185 °F)Min.: -30 °C
(-22 °F)
Description
Product overview

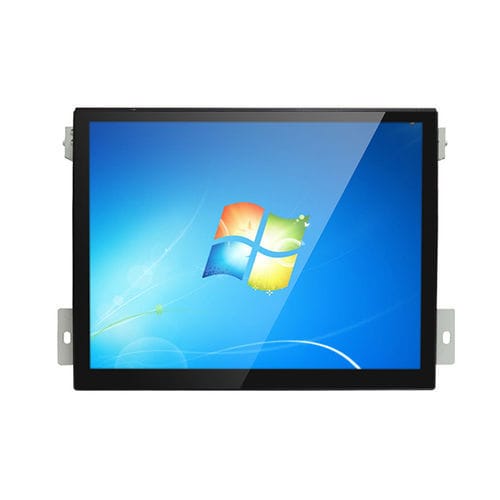

This industrial-grade 15" rack-mount LCD monitor AMG-15OPGD02T5, offered by Amongo, combines high brightness LED backlight, optional PCAP multi-touch and an IP65/NEMA 4 front for harsh environments. It is designed for continuous 24/7 operation and easy integration into rack enclosures.
Key features
Typical applications
Specifications
Model: AMG-15OPGD02T5
Screen size: 15"
Active display area (mm): 304.128 (H) x 228.096 (V)
Pixel pitch (mm): 0.297 (H) x 0.297 (V)
Display mode: Normally white
Resolution: 1024 x 768 pixels
Contrast ratio: 700:1
Colors: 16.2M / 262K
Brightness: 1200 nits
Backlight: LED
Viewing angles (CR=10): 160° (H); 140° (V)
Response time (Typ. Tr+Tf): 8 ms
Touch screen: PCAP 10-point (optional resistive)
Signal connector: VGA / DVI / USB
Power input: DC 12V
Dimensions (VxHxT): 391.2 x 265 x 53.6 mm
Operating temperature: -30 ~ 85 °C
Storage temperature: -30 ~ 85 °C
Relative humidity: 5% ~ 90% RH
Technical details
This industrial-grade 15" rack-mount LCD monitor AMG-15OPGD02T5, offered by Amongo, combines high brightness LED backlight, optional PCAP multi-touch and an IP65/NEMA 4 front for harsh environments. It is designed for continuous 24/7 operation and easy integration into rack enclosures.
Key features
- High brightness: 1200 nits (LED backlight)
- Optional touch: PCAP 10-point (resistive optional)
- Front panel protection: IP65 / NEMA 4; aluminum front bezel
- Signal inputs: VGA, DVI, USB
- Power: DC 12V; operating range -30 to 85 °C
Typical applications
- Industrial equipment and control panels
- Railway and transport systems
- Fitness equipment and treadmills
- OEM integration and machine control
Specifications
Model: AMG-15OPGD02T5
Screen size: 15"
Active display area (mm): 304.128 (H) x 228.096 (V)
Pixel pitch (mm): 0.297 (H) x 0.297 (V)
Display mode: Normally white
Resolution: 1024 x 768 pixels
Contrast ratio: 700:1
Colors: 16.2M / 262K
Brightness: 1200 nits
Backlight: LED
Viewing angles (CR=10): 160° (H); 140° (V)
Response time (Typ. Tr+Tf): 8 ms
Touch screen: PCAP 10-point (optional resistive)
Signal connector: VGA / DVI / USB
Power input: DC 12V
Dimensions (VxHxT): 391.2 x 265 x 53.6 mm
Operating temperature: -30 ~ 85 °C
Storage temperature: -30 ~ 85 °C
Relative humidity: 5% ~ 90% RH
Technical details
- Robust aluminum front bezel suitable for industrial environments
- Front protection IP65 / NEMA 4 for dust and splash resistance
- Multiple I/O for legacy and modern systems (VGA, DVI, USB)
- Optional customization and integration services available from Amongo
