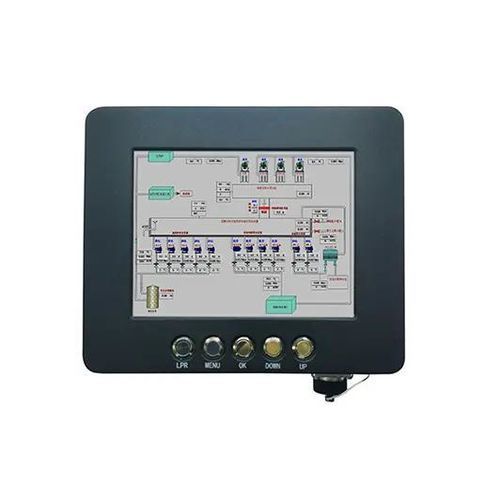

LCD monitor AMG-06IPMI01T2

LED backlight5-wire resistive touch screenindustrial

Product overview
The industrial LCD monitor AMG-06IPMI01T2 by Amongo is designed for IP67-rated waterproof applications and continuous operation in harsh environments.

• Branded LCD panel with wide viewing angles and 640×480 resolution for clear visualization.
• Industrial-grade components for reliable 24/7 operation.
• 5‑Wire resistive touchscreen suitable for use with gloves and in contaminated environments.
• Ingress protection IP67 and wide operating temperature range for outdoor and industrial use.
• Customization options available on request (interfaces, mounting, panel cutouts).

Specifications
Model: AMG-06IPMI01T2
Screen size: 6.5"
Active display area: 132.48 × 99.36 mm
Resolution: 640 × 480 pixels
Pixel pitch: 0.207 × 0.207 mm
Display mode: Normally White
Brightness: 800 cd/㎡
Contrast ratio: 600:1
Backlight: LED
Viewing angles: 160H × 140V (CR=10)
Response time: 25 ms (Typ. Tr+Tf)
Signal connector: WeiPu WY28-24 (VGA)
Power: DC 12V / 24V
Dimensions (V×H×T): 192 × 160 × 45 mm
Ingress protection: IP67
Operating temperature: -30～80℃
Storage temperature: -30～80℃
Relative humidity: 5% RH ～ 90% RH

Technical features

• Robust mechanical design for demanding industrial environments
• 5‑Wire resistive touch panel with reliable input in harsh conditions
• High brightness (800 cd/㎡) for improved readability in varied lighting
• Flexible power input: DC 12V or 24V
• Available customization: connector options, mounting solutions and panel cutouts
