TFT-LCD monitor AMG-27IPIT01G1multitouch screenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- projected capacitive touchscreen, TFT-LCD, resistive touch screen, multitouch screen, PCAP touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED backlight
- Applications
- for industrial machines, industrial, outdoor, advertising, for in-line monitoring, for displays, for medical applications, for HMI interface, POS, multifunction, for tests, CCFL backlight, for IoT applications, wide viewing angle, high-temperature, for CNC machines, for indoor use, for the automotive industry
- Display size
- 27"
- Resolution
- 1920 x 240
- Mounting
- wall-mount
- Other characteristics
- HDMI, VGA, DVI port, high-brightness, wide viewing angle, anti-glare
- Width
124.7 mm
(4.9094 in)- Height
771.6 mm
(30.378 in)- Thickness
66 mm
(2.598 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
Product overview

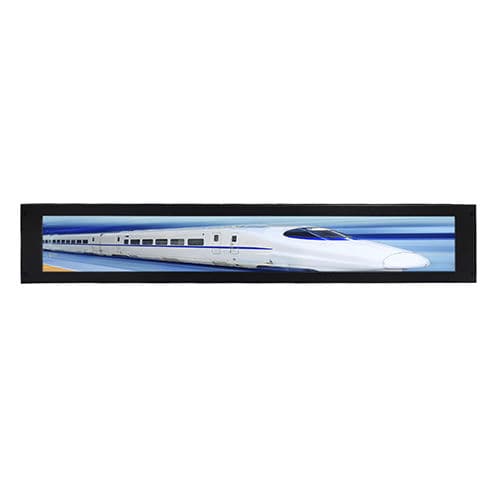

The industrial bar‑type LCD monitor AMG-27IPIT01G1 by Amongo is engineered for continuous 24/7 operation in demanding environments. It combines a high‑brightness panel, industrial‑grade components and secure mechanical features to support integration into control rooms, kiosks and machinery HMI applications.
Specifications
Model Name: AMG-27IPIT01G1
Screen Size: 27"
Active Display Area (mm): 211.2 (H) x 158.4 (V)
Pixel Pitch (mm): 0.36375 x 0.36375
Display Mode: Normally white
Color Depth: 16.7M
Resolution (reported): 1920 x 240
Contrast Ratio (reported): 3000:1
Brightness: 700 nits
Backlight: LED
Viewing Angles (CR=10): 178° (H) / 178° (V)
Response Time (Typ. Tr+Tf): 8 ms
Tempered glass: Anti‑glare
Temperature sensor: Supported
Light sensor: Optional
Signal connectors: VGA / DVI‑D / HDMI / Audio
Power: DC 12V / 24V
Dimensions (V x H x T) mm: 771.6 x 124.7 x 66
Operating temperature: 0 ~ 50 °C (non‑condensing)
Storage temperature: -20 ~ 60 °C (non‑condensing)
Relative humidity: 5 ~ 90% RH
Features / Technical specifications
The industrial bar‑type LCD monitor AMG-27IPIT01G1 by Amongo is engineered for continuous 24/7 operation in demanding environments. It combines a high‑brightness panel, industrial‑grade components and secure mechanical features to support integration into control rooms, kiosks and machinery HMI applications.
- Branded LCD panel with wide viewing angles and 700 nits brightness; LED backlight.
- Industrial‑grade components selected for continuous operation.
- Anti‑glare tempered glass and anti‑dismantle screw design for secure installation.
- Built‑in temperature sensor; optional ambient light sensor.
- Customization services available (interfaces, enclosure, firmware).
Specifications
Model Name: AMG-27IPIT01G1
Screen Size: 27"
Active Display Area (mm): 211.2 (H) x 158.4 (V)
Pixel Pitch (mm): 0.36375 x 0.36375
Display Mode: Normally white
Color Depth: 16.7M
Resolution (reported): 1920 x 240
Contrast Ratio (reported): 3000:1
Brightness: 700 nits
Backlight: LED
Viewing Angles (CR=10): 178° (H) / 178° (V)
Response Time (Typ. Tr+Tf): 8 ms
Tempered glass: Anti‑glare
Temperature sensor: Supported
Light sensor: Optional
Signal connectors: VGA / DVI‑D / HDMI / Audio
Power: DC 12V / 24V
Dimensions (V x H x T) mm: 771.6 x 124.7 x 66
Operating temperature: 0 ~ 50 °C (non‑condensing)
Storage temperature: -20 ~ 60 °C (non‑condensing)
Relative humidity: 5 ~ 90% RH
Features / Technical specifications
- Model: AMG-27IPIT01G1
- Screen: 27" (active area 211.2 x 158.4 mm)
- Pixel pitch: 0.36375 mm
- Color depth / Display resolution: 16.7M / 1920 x 240
- Contrast / Brightness: 3000:1 / 700 nits
- Backlight: LED; Viewing angles: 178° / 178°
- Response time: 8 ms (typ.)
- Protective glass: Anti‑glare tempered glass
- Sensors: Temperature (built‑in), Light (optional)
- Inputs: VGA, DVI‑D, HDMI; Audio output
- Power supply: DC 12V / 24V
- Dimensions: 771.6 x 124.7 x 66 mm
- Operating range: 0 ~ 50 °C; Storage: -20 ~ 60 °C; Humidity: 5 ~ 90% RH
