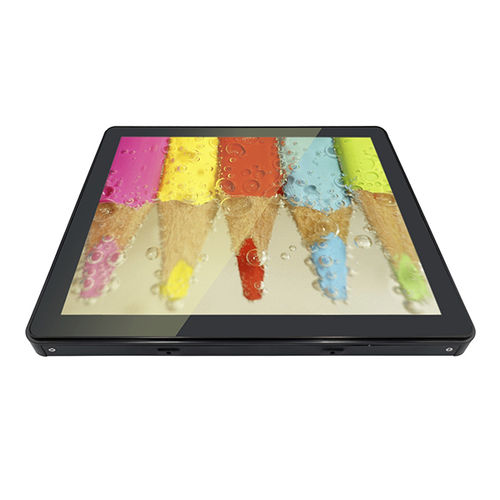

TFT-LCD monitor AMG-17IPTP01T3

multitouch screenresistive touch screenLED backlight

Overview
The AMG-17IPTP01T3 is a 17-inch sunlight-readable touchscreen monitor engineered for outdoor and industrial applications. It combines a 1000 nits high-brightness LED backlight, 10-point PCAP touch, UV protection and a molded front frame to provide reliable visibility and operation in harsh environments.

• Brightness: >1000 nits with proprietary LED backlight for outdoor legibility;
• Industrial-grade components and robust mechanical design for stable operation in harsh conditions;
• 10-point PCAP capacitive touch for intuitive multi-touch input;
• UV protection on touch and LCD to extend outdoor lifespan;
• Molded side frame delivering front IP65 with a flat surface for easy installation and maintenance;
• OEM/ODM customization available to match project requirements.

Technical specifications

• Model Name: AMG-17IPTP01T3
• Screen Size: 17"
• Active Display Area (mm): 337.920(H) x 270.336(V)
• Pixel Pitch (mm): 0.264(H) x 0.264(V)
• Display Resolution (pixel): 1280 x 1024
• Contrast Ratio: 1000:1
• Display Mode: 16.7M colors
• Brightness (cd/㎡): 1000 nits
• Backlight: LED
• Viewing Angles (CR=10): 170°(H); 160°(V)
• Response Time (Typ. Tr+Tf): 5 ms
• Touch Screen: PCAP Touch (10 points)
• UV: Support
• Light Sensor: Optional
• Dimension (V x H x T): 395 x 327.4 x 59.3 mm
• Signal Connector: VGA / DVI-D / HDMI / Audio
• Power Input: DC 12V
• Touch Controller: USB
• Operating Systems Support: Windows 7 / 8 / 10 / Linux (optional)
• Operating Temperature: 0 ～ 50°C (non-condensation)
• Storage Temperature: -20 ～ 60°C (non-condensation)
• Relative Humidity: 5% RH ～ 90% RH
