- LED backlight monitor
- AMONGO Display Technology(ShenZhen)Co.,LTD

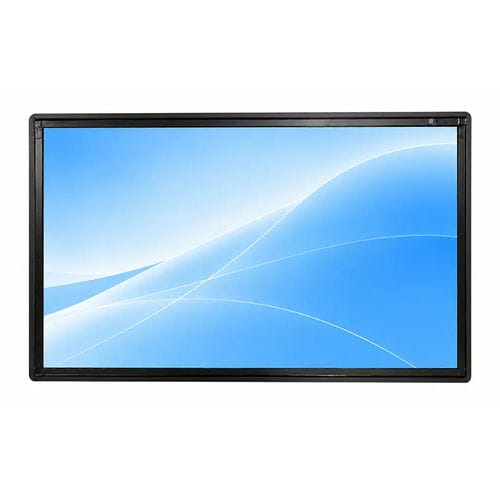

LED monitor AMG-22IPPC01T4LED backlightPCAP touchscreenfor digital signage
Add to favorites
Compare this product
Characteristics
- Technology
- PCAP touchscreen, LED, LED backlight
- Applications
- for industrial machines, for digital signage
- Display size
- 21.5"
- Resolution
- 1680 x 1050
- Mounting
- panel-mount
- Other characteristics
- VGA, DVI port, wide viewing angle, IP67
- Width
400.1 mm
(15.752 in)- Height
573.7 mm
(22.5866 in)- Thickness
66.9 mm
(2.634 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Key features
Applications
Technical specifications
- Aluminum front frame design
- Front IP67 waterproof and dustproof protection
- Strong industrial structural design for reliable operation
- Optional PCAP 10-point touch screen
- LED backlight with 300 nits brightness
- Wide viewing angles: 178° horizontal / 178° vertical
Applications
- Kiosk systems
- Industrial automation and HMI
- Self-service terminals and public displays
Technical specifications
- Model Name: AMG-22IPPC01T4
- Screen Size: 21.5"
- Active Display Area (mm): 473.76(H) x 296.1(V)
- Pixel Pitch (mm): 0.282(H) x 0.282(V)
- Display Mode: Normally White
- Display Resolution (pixel): 1680 x 1050
- Contrast Ratio: 1000:1
- Display Color: 16.7M
- Brightness: 300 nits
- Backlight: LED
- Viewing Angles (CR=10): 178(H); 178(V)
- Response Time (Typ. Tr+Tf): 8 ms
- Optional - Touch Screen: PCAP Touch (10 points)
- Optional - Light Sensor: Support
- Optional - Tempered glass: Optional
- I/O Signal Connector: VGA / DVI
- Power Input: DC 12V
- Touch Controller: USB
- Mechanical Dimension (V x H x T) mm: 573.7 x 400.1 x 66.9
- Operating Temperature: -0 ~ 50°C (non-condensation)
- Storage Temperature: -20 ~ 60°C (non-condensation)
- Relative Humidity: 5 ~ 90% RH
