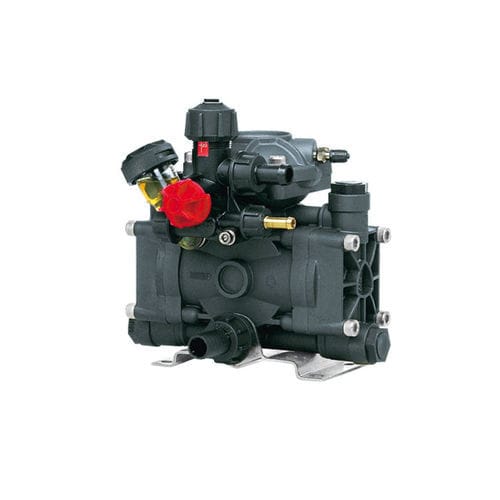

Oil pump AR 202 SP VRI BlueFlex™with electric motordiaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- oil
- Operation
- with electric motor
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- medium-pressure
- Material
- plastic, metal
- Other characteristics
- small
- Flow
23.2 l/min
(6.12879 us gal/min)- Pressure
20 bar
(290.075 psi)- Power
1.02 ch
(1.02 hp)- Fluid temperature
60 °C
(140 °F)- Length
222 mm
(9 in)- Width
198 mm
(7.8 in)- Height
220 mm
(8.66 in)- Weight
4 kg
(8.82 lb)
Description
Semi-hydraulic two-diaphragm pump, for use in the gardening or semi-professional agricultural sectors. Trolley-mounted in combination with electric motors or internal combustion engines for gardening, and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards. Parts in contact with pumped liquids in anodized aluminium, and AISI 303/304. Diaphragms in BlueFlex™. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking. Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. Metal fasteners with galvanised finish. Available with reduction gearboxes for electric motors or internal combustion engines and flanges for hydraulic motors or small cultivating machines.
