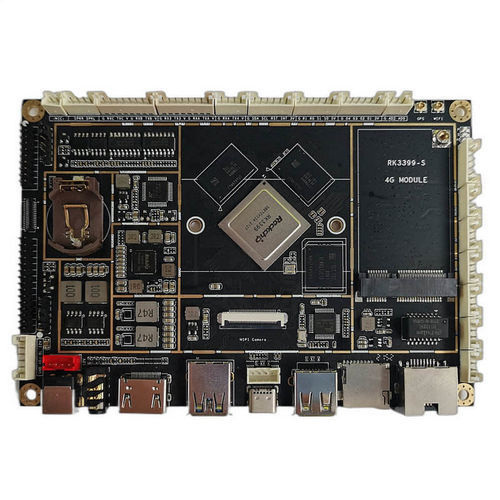

Embedded motherboard SMT-5

Rockchip RK3399 SoCRockchip RK3568Rockchip RK3588

Product Introduction
Your end-to-end PCBA partner: from prototype to high-volume production.
We provide one-stop PCBA manufacturing and design services including custom PCB design, component sourcing, precision SMT assembly and comprehensive testing to deliver turnkey electronic solutions for advertising displays and related consumer electronics. We support prototype runs and scalable mass production with certified processes to reduce supply-chain risk and accelerate time-to-market.

Product Parameters
Key attributes
Base Material: glass fibre
Board Thickness: 0.6~3.0mm
Model Number: SMT-5
Place of Origin: Guangdong, China
Brand: ASK
Copper Thickness: 1-5 oz
Min. Hole Size: 0.2mm
Min. Line Width: 0.1mm
Min. Line Spacing: 0.1mm
Functional Application: General Purpose / consumer electronics
Material: FR-4
Type: PCB Board (Customize SMT Assembly)
Surface Finishing: Lead-sprayed tin / Lead-free tin / customize
Board Size: 5x5mm to 500x600mm
Product name: Customize SMT Assembly
Service: One-stop Service
Application: consumer electronics
Surface Finishing (additional): Gold Finger, Immersion Silver, Immersion Tin
Solder mask color: Green, yellow, blue, black, white
PCB Standard: IPC-A-610 D / IPC-III Standard
Keyword: SMT Assembly
MOQ: 5 Piece
Test: 100% Electrical
Certificate: SO / ROHS / CE / CQC / ATF16949

Packaging and delivery
Selling Units: Single item
Lead time (Quantity / Lead time days): 1 - 1000 => 3 days; 1001 - 10000 => 7 days; > 10000 => To be negotiated

Additional product images and detail photos
Gallery available showing board layouts, assembly examples and detailed PCB shots to aid technical evaluation and integration.

Technical specifications

• Base Material: glass fibre
• Board Thickness: 0.6~3.0mm
• Model Number: SMT-5
• Place of Origin: Guangdong, China
• Brand: ASK
• Copper Thickness: 1-5 oz
• Minimum Hole Size: 0.2mm
• Minimum Line Width: 0.1mm
• Minimum Line Spacing: 0.1mm
• Functional Application: General Purpose / consumer electronics
• Material: FR-4
• Type: PCB Board (Customize SMT Assembly)
• Surface Finishing Options: Lead-sprayed tin, Lead-free tin, Gold Finger, Immersion Silver, Immersion Tin
• Board Size Range: 5x5mm to 500x600mm
• Solder Mask Colors: Green, yellow, blue, black, white
• Standards & Tests: IPC-A-610 D / IPC-III, 100% Electrical testing
• Certificates: SO, ROHS, CE, CQC, ATF16949
• MOQ: 5 Piece
• Service: One-stop full-turnkey PCBA solutions (design, sourcing, assembly, testing)
• Lead times: 1-1000 pcs: 3 days; 1001-10000 pcs: 7 days; >10000 pcs: to be negotiated
