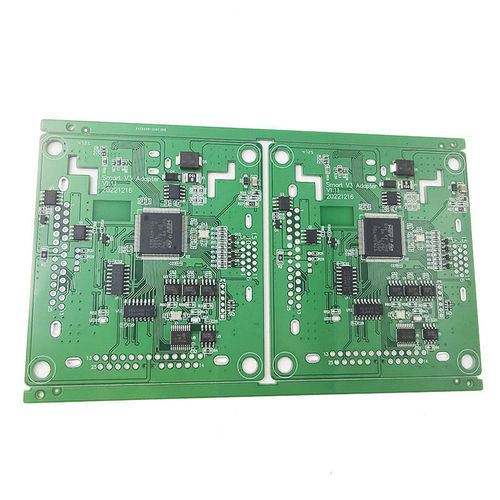

Lead-free PCBA SMT-5

custom-madefor IoT applicationsfor electronics

Product Overview
We provide turnkey PCBA manufacturing and design services for IoT and smart device applications. From PCB design, component sourcing and SMT assembly to final testing, we deliver PCBAs suited for wireless connectivity (BLE, Wi-Fi) and consumer electronics.

Technical Parameters

• Base material: glass fibre (FR-4)
• Board thickness: 0.6–3.0 mm
• Model number: SMT-5
• Place of origin: Guangdong, China
• Brand name: ASK
• Copper thickness: 1–5 oz
• Minimum hole size: 0.2 mm
• Minimum line width: 0.1 mm
• Minimum line spacing: 0.1 mm
• Board size range: 5 × 5 mm to 500 × 600 mm
• Surface finishing options: lead-sprayed tin, lead-free tin, spraying, customizable
• Additional surface finishes: gold finger, immersion silver, immersion tin
• Solder mask colours: green, yellow, blue, black, white
• Standards: IPC-A-610D / IPC-III
• Typical application: consumer electronics, IoT devices

Manufacturing & Capacity

• Service: one-stop SMT assembly, OEM/ODM, EMS
• MOQ: 5 pieces
• Scalable production: prototype to mass production
• Lead time examples: 1–1000 pcs = 3 days; 1001–10000 pcs = 7 days; >10000 pcs = to be negotiated

Quality, Testing & Certifications

• Test: 100% electrical testing
• Certificates: ISO / RoHS / CE / CQC / IATF 16949
• PCB standard: IPC-A-610D / IPC-III

Services & Support

• PCB design and DFM review
• BOM sourcing and management
• Functional testing and inspection
• Packaging and logistics options
• After-sales technical support
