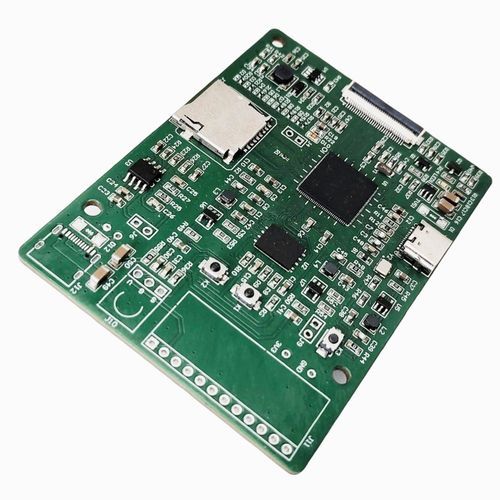

Lead-free PCBA SMT-5

custom-madefor IoT applicationsfor communication module

Product Introduction
We act as a one-stop PCBA design and manufacturing partner for industrial IoT devices. From prototype runs to high-volume production, we deliver end-to-end PCBA services including custom PCB design, component sourcing, SMT assembly, and 100% electrical testing. Our turnkey workflow is adapted for smart factory connectivity products (LoRa / Ethernet) and supports custom protocol stacks and integration requirements.

Product Parameters
Key attributes
Base Material: glass fibre
Board Thickness: 0.6~3.0mm
Model Number: SMT-5
Place of Origin: Guangdong, China
Brand Name: ASK
Copper Thickness: 1-5 oz
Min. Hole Size: 0.2mm
Min. Line Width: 0.1mm
Min. Line Spacing: 0.1mm
Functional Application: General Purpose / IoT connectivity
Surface Finishing (options): Lead-sprayed tin / Lead-free tin / spraying / customize
Board Size: 5*5mm to 500*600mm
Type: PCB Board / PCBA
Material: FR-4
Product name: Customize SMT Assembly
Service: One-stop Service
Application: consumer electronics / industrial IoT
Additional Surface Finishing options: Gold Finger, Immersion Silver, Immersion Tin
Solder mask color: Green, yellow, blue, black, white
PCB Standard: IPC-A-610 D / IPC-III Standard
Keyword: SMT Assembly
MOQ: 5 Piece
Test: 100% Electrical
Certificate: SO / ROHS / CE / CQC / ATF16949
Selling Units: Single item
Lead time (by quantity): Quantity (pieces): 1 - 1000 => Lead time (days): 3; 1001 - 10000 => 7; > 10000 => To be negotiated

Technical specifications

• Model Number: SMT-5
• Brand: ASK
• Base Material: glass fibre
• Board Thickness: 0.6–3.0 mm
• Board Size Range: 5×5 mm to 500×600 mm
• Material: FR-4
• Copper Thickness: 1–5 oz
• Minimum Hole Size: 0.2 mm
• Minimum Line Width: 0.1 mm
• Minimum Line Spacing: 0.1 mm
• Surface Finishing Options: Lead-sprayed tin, Lead-free tin, spraying, customize; Gold Finger, Immersion Silver, Immersion Tin
• Solder Mask Colors Available: Green, yellow, blue, black, white
• Standards & Testing: IPC-A-610 D / IPC-III Standard; 100% electrical test
• Service: Customize SMT Assembly; One-stop full-turnkey PCBA service (prototype to high-volume)
• Typical Application: Consumer electronics / Industrial IoT connectivity
• MOQ: 5 pieces
• Certificates: SO, ROHS, CE, CQC, ATF16949
• Lead times: 1–1000 pcs = 3 days; 1001–10000 pcs = 7 days; >10000 pcs = to be negotiated
