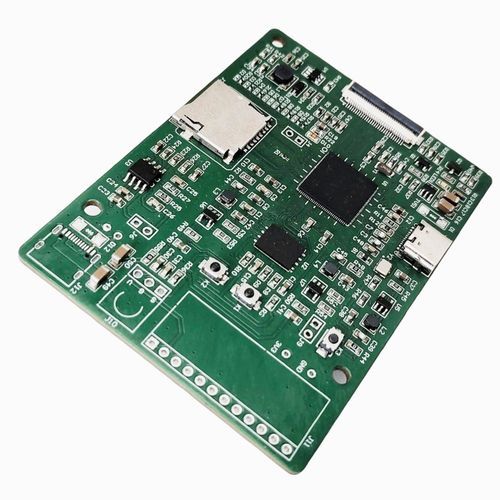

Industrial gateway SMT-5

IoTEthernetLoRa

Product Introduction
One-stop PCBA manufacturing and design partner for industrial IoT gateway modules used in smart factory environments. We provide full-turnkey PCBA services including custom PCB design, component procurement, precision SMT assembly, firmware integration and comprehensive testing — scalable from low-volume prototypes to high-volume production.

Product Parameters
Key attributes:

• Base Material: glass fibre (FR-4)
• Board Thickness: 0.6–3.0 mm
• Model Number: SMT-5
• Place of Origin: Guangdong, China
• Brand: ASK
• Copper Thickness: 1–5 oz
• Minimum Hole Size: 0.2 mm
• Minimum Line Width: 0.1 mm
• Minimum Line Spacing: 0.1 mm
• Functional Application: General purpose IoT gateway / industrial electronics
• Surface Finishing: leaded tin / lead-free tin / spray / customizable
• Board Size Range: 5 × 5 mm to 500 × 600 mm
• Type: PCB Board (FR-4 material)
• Product Name: Customize SMT Assembly
• Service: One-stop full-turnkey PCBA service (prototype to high-volume production)
• Typical Application: Consumer electronics, industrial IoT gateways
• Additional Surface Finishing: Gold Finger, Immersion Silver, Immersion Tin
• Solder Mask Colors Available: green, yellow, blue, black, white
• Standards: IPC-A-610 D / IPC-III
• Keyword: SMT Assembly
• Minimum Order Quantity: 5 pieces
• Testing: 100% electrical testing
• Certificates: ISO, RoHS, CE, CQC, IATF16949
• Selling Unit: Single item
• Lead Times: 1–1000 pcs = 3 days; 1001–10000 pcs = 7 days; >10000 pcs = to be negotiated

Packaging and delivery
Selling Units: Single item
Packaging: anti-static foil, vacuum or tray packaging as required; inner protection for shipment
Lead time (Quantity / Lead time): 1–1000 pieces: 3 days; 1001–10000 pieces: 7 days; >10000: to be negotiated

Technical features

• Designed for smart factory IoT gateway applications with LoRa, Ethernet and custom protocol integration options
• Full-turnkey workflow: PCB layout, BOM sourcing, SMT assembly, reflow, through-hole insertion (if required), conformal coating (optional), firmware programming and final testing
• Quality controls: 100% electrical testing, ICT/X-ray/optical inspection and functional validation available
• Flexible surface finishes, solder mask colors and board sizes to meet industrial requirements
• Scalable production with industry certifications (ISO, RoHS, CE, CQC, IATF16949)
