TFT LCD display module ASK0246NB01N3224R10C01

TFTIPScolor

Product Introduction
ASK offers turnkey PCBA manufacturing and design support for embedded display modules. This 2.46-inch TFT IPS LCD module with CVBS analog input is intended for industrial HMIs, machine vision monitors and embedded video applications where a compact 4:3 display is required. We support customization, component sourcing, assembly and electrical testing to integrate the module into your product build.

Product Parameters
Key attributes:

• Display size: 2.46 inch
• Resolution: 320 x 240 pixels
• Panel type: TFT IPS
• Interface: CVBS (analog video)
• Supply voltage: DC 12V
• Aspect ratio: 4:3
• Typical brightness: 300 cd/m² (Typ.)
• Model identifier: ASK0246NB01N3224R10C01

Packaging and delivery
Selling Units: Single item
Lead time (Quantity / pieces): 1 - 1000 / 1001 - 10000 / > 10000
Lead time (days): 3 / 7 / To be negotiated

Additional Images

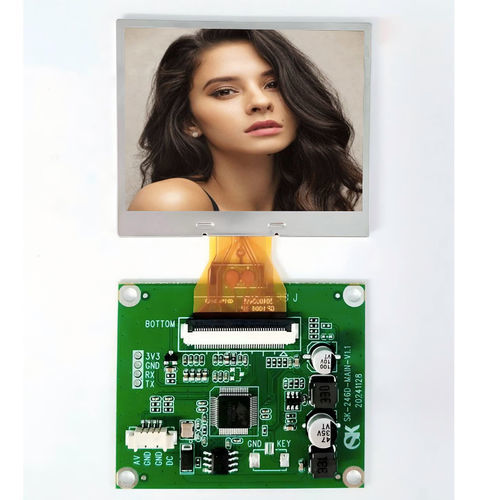

Multiple product detail and assembly images available showing front view, rear PCB, connector details and example mounting variants to assist integration and enclosure design.

Technical specifications

• Display size: 2.46 inch
• Resolution: 320 x 240 pixels
• Panel type: TFT IPS
• Interface: CVBS (analog video)
• Supply voltage: DC 12V
• Aspect ratio: 4:3
• Typical brightness: 300 cd/m²
• Model identifier: ASK0246NB01N3224R10C01
• Selling unit: single item
• Lead times: 3 days (1-1000 pcs), 7 days (1001-10000 pcs), negotiable for larger volumes
