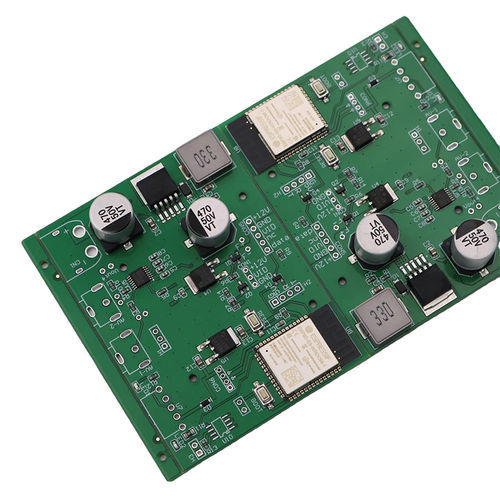

Lead-free PCBA SMT-5

custom-madefor IoT applicationsfor electronics

Product Introduction
We provide one-stop PCBA manufacturing and design services for ESP32-based IoT power and control solutions. Services include custom PCB design, component sourcing, SMT assembly and full functional testing to deliver market-ready electronics for industrial and consumer IoT applications.

Product Parameters
Key attributes
Base Material: glass fibre (FR-4)
Board Thickness: 0.6–3.0 mm
Model Number: SMT-5
Place of Origin: Guangdong, China
Brand Name: ASK
Copper Thickness: 1–5 oz
Min. Hole Size: 0.2 mm
Min. Line Width: 0.1 mm
Min. Line Spacing: 0.1 mm
Functional Application: General purpose (power & control, IoT)
Surface Finishing: Lead-sprayed tin / Lead-free tin; customizable
Board Size: 5×5 mm to 500×600 mm
Type: PCB board / SMT PCBA
Material: FR-4
Product name: Custom SMT Assembly
Service: One-stop service (design → assembly → test)
Application: Consumer electronics, IoT devices, industrial control
Surface Finishing (additional): Gold Finger, Immersion Silver, Immersion Tin
Solder mask color: Green, yellow, blue, black, white
PCB Standard: IPC-A-610 D / IPC-III Standard
Keyword: SMT Assembly
MOQ: 5 Piece
Test: 100% Electrical test
Certificate: ISO/ROHS/CE/CQC/ATF16949

Packaging and delivery
Selling Units: Single item
Packaging: Anti-static tray or reel, inner protection and outer carton; custom packaging on request.

Lead time
Quantity (pieces): 1 - 1000 | 1001 - 10000 | > 10000
Lead time (days): 3 | 7 | To be negotiated

Technical specifications

• Model Number: SMT-5
• Brand: ASK
• Base Material: glass fibre (FR-4)
• Board Thickness: 0.6–3.0 mm
• Copper Thickness: 1–5 oz
• Minimum Hole Size: 0.2 mm
• Minimum Line Width / Spacing: 0.1 mm
• Board Size Range: 5×5 mm to 500×600 mm
• Surface Finishing Options: Lead-sprayed tin, Lead-free tin; Gold Finger, Immersion Silver, Immersion Tin
• Solder Mask Colors: Green, yellow, blue, black, white
• Standards & Testing: IPC-A-610 D / IPC-III Standard; 100% electrical test
• MOQ: 5 pieces
• Typical Applications: Consumer electronics, IoT, industrial control
• Certificates: ISO / ROHS / CE / CQC / ATF16949
