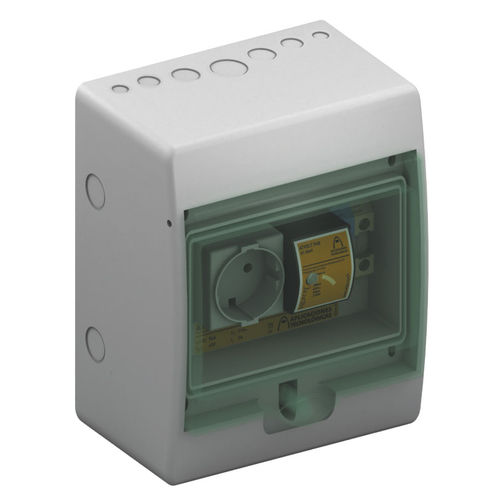

Type 2 surge arrester ATCOMBO 230M
type 3for power suppliescompact

type 2 surge arrester
type 2 surge arrester
type 2 surge arrester
Add to favorites
Compare this product


Characteristics

Type
type 2, type 3
Applications
for power supplies
Other characteristics
compact, single-phase, AC/DC, wall-mount
Primary current

10,000 A, 30,000 A

Voltage

230 V, 275 V

Open circuit voltage

700 V, 900 V

Description

Tested and certified as a protector Type 2+3 according to the standard EN IEC 61643-11. Suitable for Categories I, II, III, IV according to ITC-BT-23. Double connection in order to facilitate wiring (limited to 63 A). Compact multi-pole protection. Both common and differential protection. Coordinable with protectors of series ATSHOCK, ATSHIELD and ATSUB. Short response time. Does not produce deflagration. Their activation causes no interruption in power supply. Thermodynamic control device. Voltage-free contact for the remote control. ATCOVER series protectors have been tested in official and independent laboratories, obtaining their characteristics according to relevant standards. Certificated tests according to EN IEC 61643-11. Complies with requirements of UL 1449. Relevant standards: NF C 17102, UNE 21186, EN IEC 62305. Products compliant with EC requirements.
