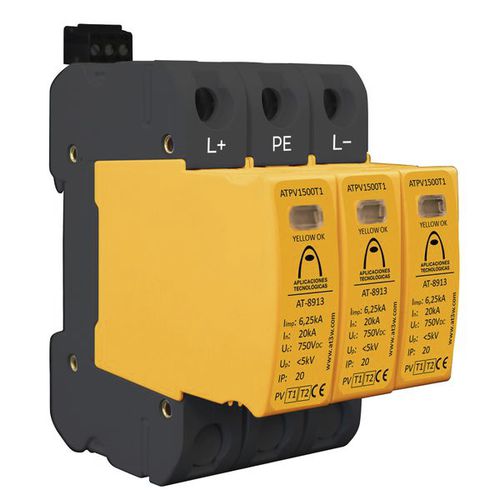

Type 2 surge arrester ATPV
for photovoltaïc installationsDIN railDC

type 2 surge arrester
type 2 surge arrester
Add to favorites
Compare this product


Characteristics

Type
type 2
Applications
for photovoltaïc installations
Other characteristics
DIN rail, DC
Primary current

40,000 A

Voltage

950 V, 1,000 V

Description

Tested and certified as a protector Type 2 according to the standard EN IEC 61643-11. With removable modules for replacement in the event of a breakdown or fault. Compact multi-pole protection. Containing zinc oxide varistors able to withstand very high currents. Short response time. Does not produce deflagration. Their activation causes no interruption in power supply. Thermodynamic control device. They are able to protect inverters with an open input voltage of 1000 VDC. ATPV series protectors have been tested in official and independent laboratories, obtaining their characteristics according to relevant standards. Certificated tests according to EN IEC 61643-31. Complies with requirements of UL 1449. Relevant standards: NF C 17102, UNE 21186, EN IEC 62305. Products compliant with EC requirements.
