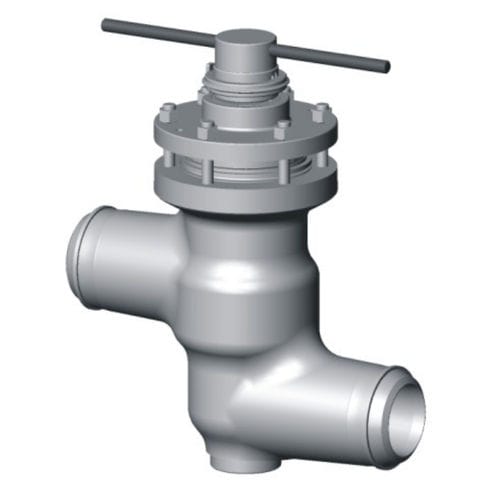

Globe valve A2 series leverelectrically-actuatedshut-off
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- lever, electrically-actuated
- Function
- shut-off, regulating
- Body
- weld, stainless steel, carbon steel
- Applications
- for nuclear applications
- Other characteristics
- standard, remote control
- DN
Max.: 150 mm
(5.906 in)Min.: 10 mm
(0.394 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 10 bar
(145 psi)- Temperature
250 °C
(482 °F)
Description
– shut-off globe valve with bellows (A20) and regulating globe valve with bellows (A21 – rough regulation)
– forged body (lifetime up to 60 years)
– non-cobalt overlay
– multi-layer bellows with long lifetime (up to 3000 cycles )
– stem sealing by bellows
– position indicator in standard (electronic on request)
Design options:
– Z-form body
– Y-pattern body
– quick-acting design with electric actuator
Material
stainless steel 08Ch18N10T, carbon steel 12 020.1
Connection
butt welding ends
Operating
handwheel, electric actuator, gearbox, remote control (hinge)
