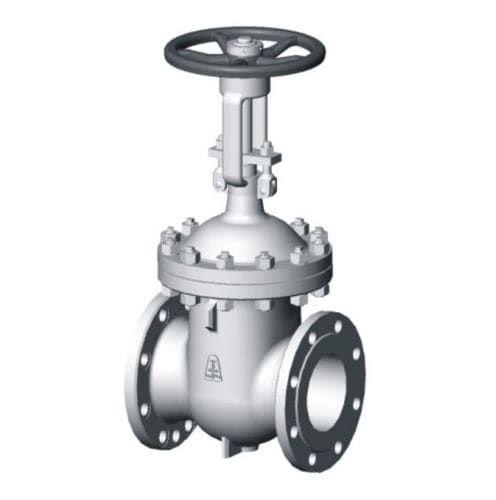

Gate valve S38pneumatically-operatedelectrically-actuatedhydraulically-operated
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- pneumatically-operated, electrically-actuated, hydraulically-operated
- Function
- shut-off
- Media
- for water, for gas, for steam
- Body
- flange, weld
- Applications
- flexible, gearbox
- Other characteristics
- remote control
- DN
Max.: 800 mm
(31.496 in)Min.: 40 mm
(1.575 in)- Pressure
Max.: 100 bar
(1,450.4 psi)Min.: 10 bar
(145 psi)- Temperature
Max.: 540 °C
(1,004 °F)Min.: -105 °C
(-157 °F)
Description
shut-off gate valve
– non-rotating rising stem
– non-rising handwheel
– flexible or plate wedge
– complies with the requirements of the directive 2014/68/EU and standard EN 1984
– testing is carried out according to standard EN 12266-1; part 2
Design options:
– position indicator
– limit switches
– TA-Luft (Type S38.2)
– protection cover for the stem
– drain plug
– hard facing of back seat
– by-pass
– PTFE gland packing and the packing in a separation plane
– PTFE gasket in the seat
– gland packing with leakage suction
Medium -
water, steam, gas, other working substances in the energy sector
Material -
1.0619, 1.7357, 1.4408. 1.4552, 1.1138, 42 2707.6/42 2707.9, 1.5419 / special materials on request: 1.7363, 1.4308
Connection -
flanged, weld ends, combination
Operating -
handwheel, electric actuator, gearbox, remote control, adjusment for pneumatic or hydraulic actuator
