Horizontal injection molding machine ALLROUNDER CUBE

servo-electricfor PPfor TPE

Description

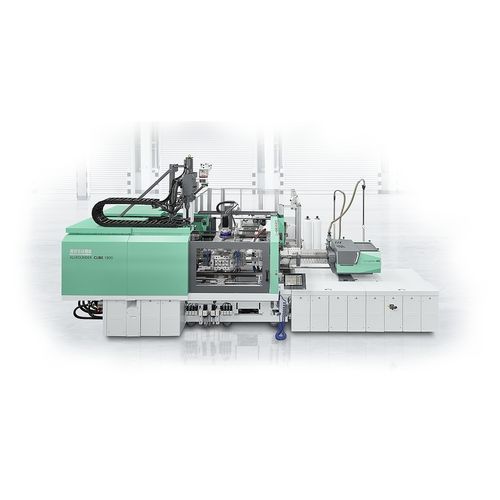

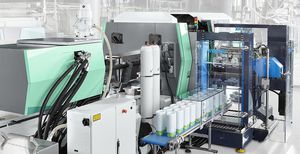

The ALLROUNDER CUBE injection moulding machine is engineered for maximum throughput in high-volume production while minimising floor space and enabling process integration.

Benefits at a glance

• Synchronised – Machine technology matched to cube moulds enables simultaneous mould filling, cooling and part removal.
• Space-saving – High output on a compact footprint thanks to a second injection unit positioned above the moving mould mounting platen; CUBE 1800 offers a particularly compact layout.
• Double output – Cube-mould technology doubles the number of cavities on the same mould-mounting surface, increasing part output by 100–200% depending on application.
• Integrated – Supports integration of process steps (unscrewing, removal, assembly) without increasing cycle time.

Features

• Cube mould – Combines doubled cavity count with shorter cycle times on the same mould-mounting surface to increase part output substantially.
• Cooling – Customised cooling-water supply adapted to cube-mould technology for 1-, 2- or 3-component production.
• Travelling injection unit – Second injection unit travels above the moving mould mounting platen, providing generous mould installation space and flexibility for multi-component processes.
• Servo-electric toggle – Double five-point toggle with multiple guidance points for precise positioning and symmetrical force application.

Part examples

• Flip-top closure – ALLROUNDER CUBE 2900: example production of 32 two-colour flip-top closures in an 8.5 s cycle; cube moulding raises output while reducing energy per part.
• Lower basket rollers – Reverse-cube configuration: fully assembled lower basket rollers for dishwashers produced up to 40% faster (e.g. 24 finished rollers in 9.5 s).
• 3-component functional part – Multi-material parts (PP/TPE/POM) produced with an 8+8+8-cavity mould on an ALLROUNDER CUBE 1800 in an assembly-injection process.

Technical data
Key model variants and selected technical data:

ALLROUNDER CUBE 4600
Distance between tie bars: 1020 x 1020 mm
Clamping force: 4600 kN
Injection unit (horizontal): 1300, 2100, 3200, 4600
Injection unit (moving): 70, 100, 170, 290, 400, 800, 1300, 2100, 3200

ALLROUNDER CUBE 2900
Distance between tie bars: 820 x 820 mm
Clamping force: 2900 kN
Injection unit (horizontal): 400, 800, 1300, 2100, 3200
Injection unit (moving): 70, 100, 170, 290, 400, 800, 1300

ALLROUNDER CUBE 1800
Distance between tie bars: 570 x 570 mm
Clamping force: 1800 kN
Injection unit (horizontal): 400, 800, 1300
Injection unit (moving): 70, 100, 170, 290, 400, 800
