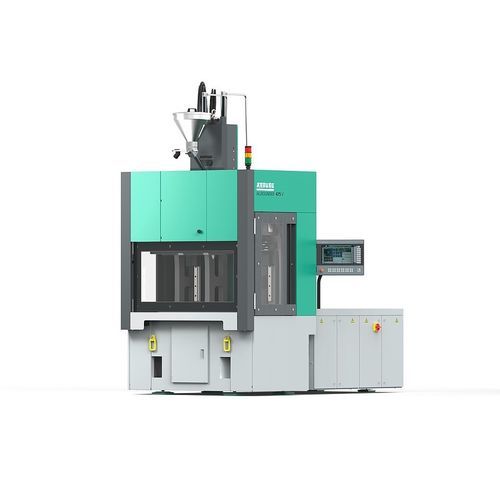

Vertical injection molding machine ALLROUNDER V

electrichydraulicfor PA6

Overview The ALLROUNDER V series comprises vertical injection moulding machines designed for overmoulding inserts and producing hybrid components. The vertical free-space system allows unobstructed access to the mould from three sides and supports manual or automated insertion/removal during the injection cycle. Vertical clamping units with high rigidity, precision and parallelism protect the mould and minimise wear.

Benefits at a glance

• Industry specific Modular configurations and individual equipment options to meet sector-specific production requirements, especially for flexible overmoulding of inserts.
• Free access Vertical free-space system provides mould access from three sides; supports manual and automated handling during injection.
• Ergonomic Low table heights, safety guards and multiple configuration options enable ergonomic and safe operation.
• Mould protection Swivel-mounted C-frame and precise parallelism of clamping units ensure optimum force transmission and reduced mould wear.

Features

• Overmoulding Support for automatic overmoulding with two-station rotary tables and multi-axis robots for continuous part feeding and safe handling of flexible inserts.
• Feed options Vertical free-space layout facilitates ergonomic manual loading/unloading and is compatible with fully automated feed systems.
• Shuttle & indexing tables Shuttle tables enable simultaneous operations and higher throughput; optional two-station shuttle or rotary tables increase cycle efficiency.

Part examples

• icam connector Eight-pin connectors with seals for digital cameras, produced on two-component rotary table machines for high-volume runs.
• Cable grommet Flexible grommets prefabricated and inserted into multiple cavities using multi-axis or six-axis robots.
• Plug insert Pre-punched PA6 metal pins overmoulded on vertical ALLROUNDER V machines and reprocessed on electric ALLROUNDERs to assemble hybrid connectors.

Technical data (selection) General: vertical free-space system, modular configurations; available in hydraulic and electric variants depending on model. Control options include SELOGICA ND with touchscreen.

ALLROUNDER 520 V
Distance between tie bars: 520 x 520 mm
Clamping force: 1600, 2000 kN
Injection unit (according to EUROMAP): 170, 290, 400, 800

ALLROUNDER 475 V
Vertical free-space system
Clamping force: 1000 kN
Injection unit (according to EUROMAP): 100, 170, 290, 400

ALLROUNDER 420 V
Distance between tie bars: 420 x 420 mm
Clamping force: 800, 1000 kN
Injection unit (according to EUROMAP): 70, 100, 170, 290, 400

ALLROUNDER 375 V
Vertical free-space system
Clamping force: 500 kN
Injection unit (according to EUROMAP): 100, 170, 290

ALLROUNDER 275 V
Vertical free-space system
Clamping force: 250 kN
Injection unit (according to EUROMAP): 70, 100
