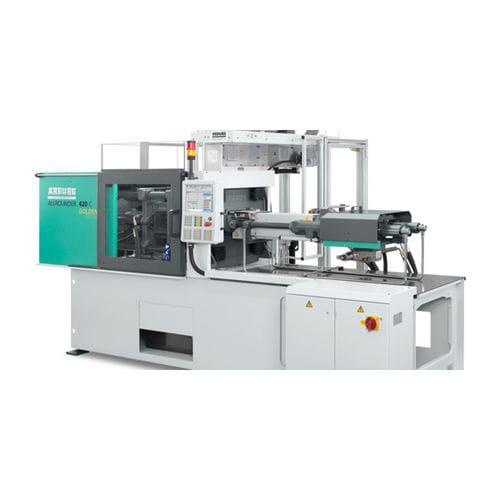

Not specified injection molding machine ALLROUNDER GOLDEN EDITION

hydraulicservo-hydraulicmodular

Overview
The gold standard – consistently standardised hydraulic injection moulding technology with a modular design for a wide range of applications. Includes two‑circuit pump technology and optional ASH servo‑hydraulic drive for reduced energy consumption.

Benefits at a glance

• Economical: entry‑level model designed for cost‑efficient production of quality parts.
• Productive: two‑circuit pump technology and optimised cycles for reduced idle times and higher throughput.
• Compatible: modular architecture enables process‑optimised configurations and low operating costs.
• Proven: used worldwide and compliant with "Made by ARBURG – Made in Germany" quality standards.

Features

• Servo‑hydraulic drive (ASH): optional ASH reduces energy demand by up to approx. 50% using powerful speed‑regulated motors while maintaining performance.
• Hydraulic clamping unit: differential piston system enables energy‑saving oil displacement to ensure high availability and long service life.
• Hydraulic injection unit: regulated injection for consistent part quality; supported by aXw Control ScrewPilot for dynamic control and reproducibility.
• SELOGICA control: menu‑guided set‑up assistant to support mould change and fast, logical ramp‑up to production.

Available machine sizes / Technical data (document highlights)

• ALLROUNDER 570 C GOLDEN EDITION — Distance between tie bars: 570 x 570 mm — Clamping force: 2000 kN — Injection unit (acc. to EUROMAP): 800
• ALLROUNDER 470 C GOLDEN EDITION — Distance between tie bars: 470 x 470 mm — Clamping force: 1500 kN — Injection unit (acc. to EUROMAP): 400, 800
• ALLROUNDER 420 C GOLDEN EDITION — Distance between tie bars: 420 x 420 mm — Clamping force: 1000 kN — Injection unit (acc. to EUROMAP): 290
• ALLROUNDER 320 C GOLDEN EDITION — Distance between tie bars: 320 x 320 mm — Clamping force: 500 kN — Injection unit (acc. to EUROMAP): 100, 170
• ALLROUNDER 270 C GOLDEN EDITION — Distance between tie bars: 270 x 270 mm — Clamping force: 400 kN — Injection unit (acc. to EUROMAP): 70, 100

Technical specifications

• Series: ALLROUNDER GOLDEN EDITION modular hydraulic machines.
• Clamping concepts: hydraulic clamping unit with differential piston for energy‑saving oil displacement.
• Drive options: standard hydraulic; optional ASH (servo‑hydraulic) for significant energy savings.
• Injection: regulated hydraulic injection with aXw Control ScrewPilot for dynamic, reproducible performance.
• Control: SELOGICA control system with set‑up assistant for guided configuration and start‑up.
• Available tie‑bar distances and clamping forces: 270 C, 320 C, 420 C, 470 C, 570 C variants.
