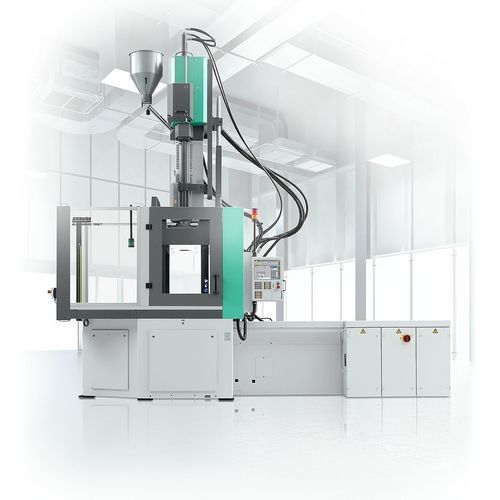

Vertical injection molding machine ALLROUNDER T

servo-electricrotating tablewith vertical rotary platen

Short description
The alternative for challenging tasks: vertical injection moulding machines ALLROUNDER T with a servo-electric three-station rotary table, configurable rotation sequences and a large mould mounting surface for complex tools.

Benefits at a glance

• Graduated: Range of machines with finely graduated sizes and different injection units; rotary tables are generally servo-electrically driven.
• Simultaneously: Versions with rotary and shuttle tables enable simultaneous moulding, insertion/overmoulding and removal; the vertical free-space concept supports parallel workflows.
• Automatable: Vertical ALLROUNDER T machines integrate easily into automated production lines; turnkey system options are available.
• High precision: Pressure accumulator and advanced control functions deliver the accuracy required for demanding sectors such as medical and mobility.

Features

• Three-station rotary table: Simultaneous insertion, overmoulding and removal; designed for complex multi-step processes.
• Ergonomics: Vertical free-space system facilitates ergonomic manual loading/unloading and operator access.

Part examples

• icam connector: Two-component rotary-table production of eight-pin connectors with seals for secure camera-electronics connections (high-volume example).
• Laptop cover: Lightweight multi-material design combining high-gloss and textured Class-A surfaces for premium laptop covers.

Technical data (documented machine examples)
ALLROUNDER 2000 T: Table diameter: 2000 mm
Clamping force: 2000 kN
Injection unit (acc. to EUROMAP): 400, 800

ALLROUNDER 1800 T: Table diameter: 1800 mm
Clamping force: 2000, 2500, 3200 kN
Injection unit (acc. to EUROMAP): 400, 800, 1300, 2100

ALLROUNDER 1600 T: Table diameter: 1600 mm
Clamping force: 1000, 1600, 2000, 2500 kN
Injection unit (acc. to EUROMAP): 70, 100, 170, 290, 400, 800

ALLROUNDER 1300 T: Table diameter: 1300 mm
Clamping force: 1000, 1600 kN
Injection unit (acc. to EUROMAP): 70, 100, 170, 290, 400, 800

characteristics / specifications technical

• Machine family / model name: ALLROUNDER T (vertical injection moulding machines with rotary table)
• Drive / table: Servo-electric rotary table (three-station option)
• Rotary table types: Three-station rotary table, free rotary table; options for rotary and shuttle tables
• Mould mounting: Large mould mounting surface for complex tools
• Automation: Designed for easy integration into automated production lines and turnkey systems
• Precision features: Pressure accumulator and advanced control functions for high precision
• Available table diameters & clamping forces (examples by model): 2000 mm / 2000 kN (2000 T); 1800 mm / 2000–3200 kN (1800 T); 1600 mm / 1000–2500 kN (1600 T); 1300 mm / 1000–1600 kN (1300 T)
• Injection unit ranges (EUROMAP references provided in documentation): examples 70–2100 (depending on model)
• Typical applications: Overmoulding inserts, multi-component parts, medical and mobility components, high-volume connector production
