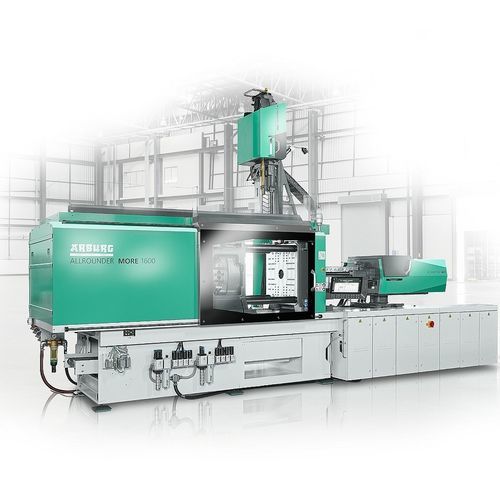

Horizontal injection molding machine ALLROUNDER MORE series

electricservo-electricfully-electric

Overview
The ALLROUNDER MORE series is a modular multi-component injection moulding machine designed for production of two‑ or multi‑material/multi‑colour parts. Models cover clamping forces from 1600 to 2000 kN and provide extended installation space for moulds, rotary units and media connections.

Benefits at a glance

• Modular: Configurable with two electric injection units and selectable injection positions to adapt to different multi-component processes.
• Spacious: Increased installation space for large moulds, rotary units, media lines and a usable ejector stroke; options for extended tie-bars and enlarged mould platens.
• User friendly: Plug‑in media couplings (electrics, water, hydraulics), easy‑change cylinder modules and material feed located outside the mould area to simplify maintenance and handling.
• Flexible: Supports horizontal and vertical injection unit combinations for multi‑colour, multi‑material and complex part geometries.

Features

• GESTICA control system: Ergonomic, intuitive controller with smart assistance functions for setup and process reliability.
• Integrated hydraulics: Hydraulic supply for secondary axes, suitable for high ejector and nozzle contact forces and compatible with existing moulds.
• Electric clamping unit: High‑dynamic toggle‑type clamping with liquid‑cooled servo motors as standard to ensure energy‑efficient, repeatable clamping.
• Two electric injection units: Configurable horizontal and vertical units to meet multi‑component production requirements.

Part examples

• Luer connector: Micro multi‑component medical connectors (e.g., PP/TPE) produced with high precision and low shot weight.
• Toothbrush: Hard/soft combinations moulded in a single cycle for integrated product designs.
• Lab‑on‑a‑Chip: Transparent, ready‑to‑use microfluidic parts produced by multi‑shot injection without post‑assembly.

Technical data (highlights)

• Clamping forces: 1600 kN – 2000 kN
• Distance between tie bars: 570 x 570 mm
• Injection unit sizes (examples) — horizontal: 400, 800, 1300; vertical: 70, 100, 170, 290
• Electric toggle‑type clamping unit with liquid‑cooled servo motors (standard)
• Multiple selectable injection positions; options for extended tie‑bars and enlarged mould platens

Technical specifications

• Series name: ALLROUNDER MORE
• Drive: Fully electric injection units; electric toggle‑type clamping unit with liquid‑cooled servomotors
• Control: GESTICA control system with assistance functions
• Hydraulics: Integrated hydraulics for secondary axes (suitable for high ejector/nozzle contact forces)
• Design highlights: Modular configuration, increased installation space, plug‑in media couplings, easy‑change cylinder modules, material feed outside mould area
