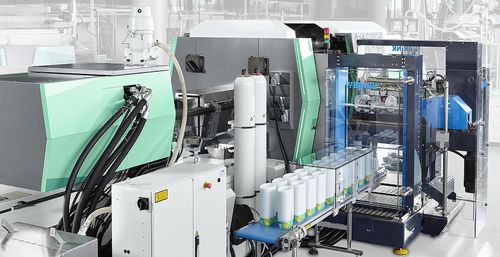

Not specified injection molding machine ALLROUNDER HIDRIVE

servo-electrichydraulichybrid

Overview
The best of both worlds: speed meets hybrid technology in a high‑performance injection moulding machine with clamping forces from 600 to 6500 kN, suitable for packaging, mobility and industrial applications.

Benefits at a glance

• Optimised cycle times: servo‑electric clamping combined with a hydraulic injection unit and accumulator technology for dynamic, short cycles.
• Energy‑efficient operation: servo‑electric direct drive for dosing with braking‑energy recovery reduces overall energy demand.
• Compact footprint: slim, precise design for reduced installation area.
• Modular & sector‑specific: configurable equipment and packaging/IML variants to match application requirements.

New machine technology
Hybrid concept that integrates servo‑electric clamping and hydraulic injection with accumulator technology to deliver speed, precision and high injection dynamics while optimising space and resources.

Features

• GESTICA control system: ergonomic, intuitive interface with smart assistance functions for faster setup and operation.
• Swivelling injection unit: enables screw removal without dismantling the barrel module for rapid maintenance.
• Robust drives: double five‑point toggle with symmetrical force transmission and multi‑point guidance.
• Servo‑electric knee‑levers and hydraulic accumulator ensure precise mould movements and dynamic injection performance.

Part examples / Applications

• Packaging / IML: thin‑wall cups, lids and buckets — high output in packaging executions.
• Mobility components: high‑volume reels/coils produced on hybrid platforms.
• Other industrial parts requiring dynamic filling, short cycles and high precision.

Technical data (selection of model examples)

• ALLROUNDER 1120 H — Tie‑bar distance: 1120 x 1120 mm; Clamping force: 6500 kN; Injection unit (EUROMAP): 3200, 4600, 7000
• ALLROUNDER 1020 H Clamp‑Design Packaging (P) — Tie‑bar distance: 1020 x 1020 mm; Clamping force: 6000 kN; Injection unit (EUROMAP): 3200, 4600, 7000
• ALLROUNDER 920 H (Packaging) — Tie‑bar distance: 920 x 920 mm; Clamping force: 4600–5000 kN; Injection unit (EUROMAP): 2100, 3200, 4600
• ALLROUNDER 820 H (Packaging) — Tie‑bar distance: 820 x 820 mm; Clamping force: 3700–4000 kN; Injection unit (EUROMAP): 2100, 3200, 4600
• ALLROUNDER 720 H (Packaging) — Tie‑bar distance: 720 x 720 mm; Clamping force: 2900–3200 kN; Injection unit (EUROMAP): 1300, 2100, 3200

Characteristics / Technical specifications

• Product family: ALLROUNDER HIDRIVE (hybrid injection moulding machines)
• Clamping force range: approx. 600 to 6500 kN
• Clamping system: servo‑electric direct drive for dosing; double five‑point toggle for symmetric force application
• Injection system: hydraulic injection unit with accumulator technology for high dynamic injection
• Injection unit options: multiple EUROMAP‑based sizes depending on model (examples: 1300, 2100, 3200, 4600, 7000)
• Swivelling injection unit: enables screw removal without dismantling the barrel module
• Control: GESTICA with smart assistance functions
• Design: compact footprint; modular configurations; packaging/IML executions available
• Applications: packaging (IML, thin‑wall), mobility components, other industrial parts
