Horizontal injection molding machine ALLROUNDER GOLDEN

servo-electricfor PPfast-cycling

Product overview

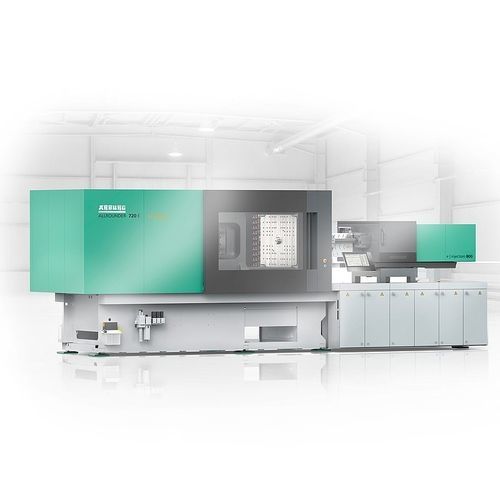

The ALLROUNDER 720 E GOLDEN ELECTRIC is a servo‑electric injection moulding machine designed for high process stability, precise part quality and energy‑efficient production. It offers a clamping force of 2,800 kN in a compact footprint for industrial series production.

Benefits at a glance

• Servo‑electric concept: Electric drives for injection, dosing and mould movements enable high accelerations, fast cycle times and simultaneous axis operations.
• Energy saving: Toggle‑type clamping concept and efficient servo drives can reduce energy consumption by up to 50%.
• Low emissions and wear: Precision ball‑screw drives and high‑quality servo systems minimise abrasion, noise and heat loss.
• Compact installation: Slimline machine design reduces required floor area by up to about 3 m².

Features

• Servo‑electric drive: Liquid‑cooled servo motors with ball‑screw power transmission and optimised kinematics of the double five‑point toggle.
• GESTICA control: Ergonomic, intuitive controller with smart assistance functions to speed up setup and safe operation.
• Swivelling injection unit: Injection unit can swing out to allow screw removal without dismantling the cylinder module for fast maintenance.

Technical data (excerpt)

• Distance between tie bars: 720 x 720 mm
• Clamping force: 2,800 kN
• Injection unit (EUROMAP): 800, 1300

Part examples
The ALLROUNDER 720 E GOLDEN ELECTRIC is used to produce razor covers in PP with a 24‑cavity mould. Typical production data: cycle time approx. 11.5 s; part weight approx. 1.2 g.

Training courses (examples)

• Electric ALLROUNDER SELOGICA DIRECT/ND — machine operation: basic knowledge
• Preventive maintenance — increase machine availability
• Energy efficiency — saving energy in the injection moulding process
• Electric ALLROUNDER service course — Maintenance Engineer STEP1: Basic knowledge

Technical specifications

• Model: ALLROUNDER 720 E GOLDEN ELECTRIC
• Clamping force: 2,800 kN
• Tie‑bar spacing: 720 x 720 mm
• Injection units (EUROMAP): 800, 1300
• Drive concept: Liquid‑cooled servo‑electric drives; ball‑screw transmission
• Clamping unit: Double five‑point toggle (toggle‑type clamping unit, servo‑electric)
• Swivelling injection unit for fast screw removal
• Energy reduction potential: up to 50%
• Space saving: compact footprint; potential reduction of up to ~3 m²
