Triaxial accelerometer ASC 5415LN
capacitiveMEMSlow-noise

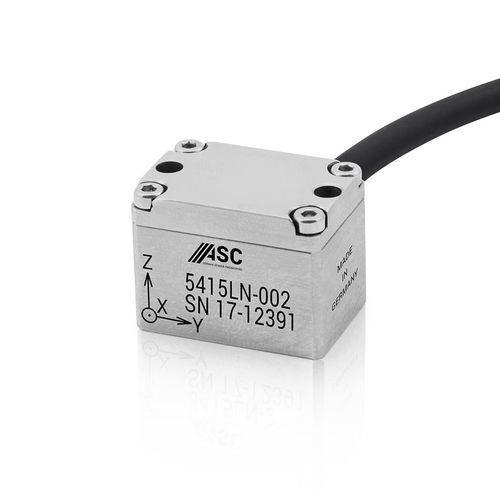

Triaxial accelerometer - ASC 5415LN - ASC - capacitive / MEMS / low-noise
Triaxial accelerometer - ASC 5415LN - ASC - capacitive / MEMS / low-noise
Add to favorites
Compare this product
Go to the ASC website for more information

Characteristics

Number of axes
triaxial
Technology
capacitive, MEMS
Other characteristics
low-noise, voltage output, with analog output, with built-in electronics, IP65, analog
Acceleration range

Max.: 3,923 m/s²
(12,870 ft/s²)

Min.: -3,923 m/s²
(-12,870 ft/s²)

Frequency

Max.: 2,000 Hz

Min.: 0 Hz

Description

Product overview
Sensors of type ASC 5415LN are triaxial MEMS capacitive accelerometers providing a differential analog voltage output and optimized LN (low-noise) performance for detection of very small acceleration amplitudes. They suit precision industrial measurements across three axes.

Technology
The ASC 5415LN uses proven MEMS capacitive sensing with integrated electronics delivering a differential analog output (±4 V full scale) and a wide supply range (6–40 VDC). The LN variant is tuned to minimize noise density for high signal‑to‑noise ratio in low-amplitude measurements.

Housing
Robust stainless-steel housing with protection class IP65. Sensors are supplied with an integrated cable; cable length and connector type are configurable to application requirements.

Applications
The triaxial ASC 5415LN detects smallest acceleration amplitudes in three degrees of freedom. Typical uses include aerodynamic and mass-related imbalance measurements on wind turbines, ride-comfort evaluation on passenger ships, and other precision vibration or dynamics monitoring tasks.

Key product data
  • Sensor type: Accelerometer analog
  • Sensor technology: MEMS capacitive
  • Number of sensitive directions: Triaxial (3-axis)
  • Output signal: Differential analog voltage (±4 V FSO)
  • Power supply: 6 to 40 VDC
  • Measurement ranges [g]: ±2, ±5, ±10, ±25, ±50, ±100, ±200, ±400

Environmental & mechanical
  • Temperature range: -40°C to +125°C
  • Protection class: IP65
  • Housing material: Stainless steel

Performance (indicative)
  • Noise density: approx. 7 to 400 µg/√Hz (depending on range/variant)
  • Frequency range (±5 %): DC to 2000 Hz

Technical specifications
  • Model name: ASC 5415LN
  • Sensor technology: MEMS capacitive
  • Axes: Triaxial
  • Output: Differential analog voltage (±4 V FSO)
  • Supply voltage: 6–40 VDC
  • Measurement ranges: ±2 g, ±5 g, ±10 g, ±25 g, ±50 g, ±100 g, ±200 g, ±400 g
  • Noise density: 7–400 µg/√Hz
  • Frequency range: DC – 2000 Hz (±5 %)
  • Operating temperature: -40 °C to +125 °C
  • Protection: IP65
  • Housing: Stainless steel
  • Cable: Integrated cable with configurable length and connectors
