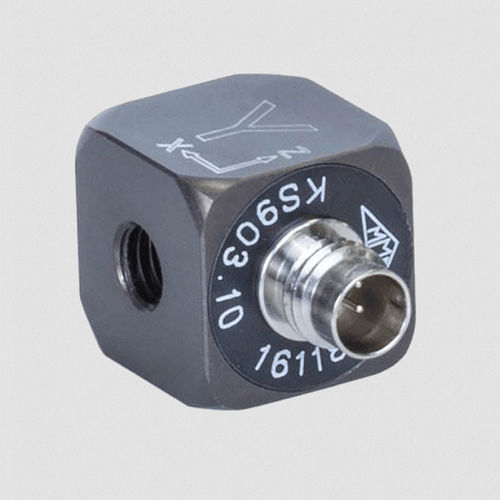

Triaxial accelerometer KS903B.10piezoelectricIEPEelectric
Add to favorites
Compare this product
Characteristics
- Number of axes
- triaxial
- Technology
- piezoelectric, IEPE
- Other characteristics
- compact, electric, analog
- Frequency
Max.: 22,000 Hz
Min.: 0.15 Hz
Description
Piezoelectric accelerometers are based on PZT ceramic and feature IEPE (integrated electronics piezo electric) circuitry for converting of the charge to an analog output voltage signal.
The triaxial KS903B.10 operates at a constant current from 2 to 20 mA, is equipped with a side connector and integrated TEDS (transducer electronic data sheet, DS2431).
Housing:
The accelerometers weigh 6.2 grams (without cable) as well as feature a reliable aluminum housing (hard coated) and a detachable cable with configurable length and connectors.
Applications:
These compact IEPE accelerometers are predominantly used in demanding test and measurement applications such as structural and modal analyses for automotive and railway testing, lightweight planes and other light constructions.
