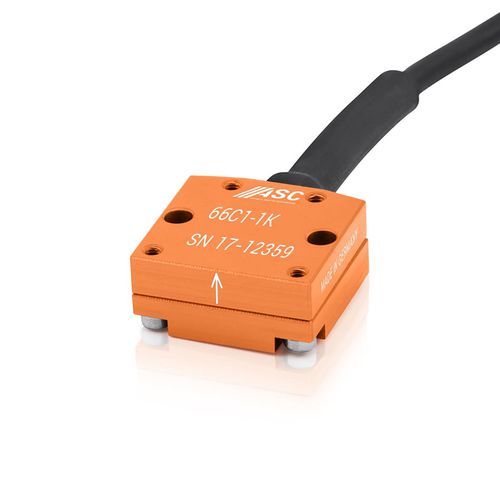

1-axis accelerometer ASC 66C1
piezoresistivefor crash tests

1-axis accelerometer
1-axis accelerometer
Add to favorites
Compare this product


Characteristics

Number of axes
1-axis
Technology
piezoresistive
Other characteristics
for crash tests
Acceleration range

Min.: 4,903 m/s²
(16,086 ft/s²)

Max.: 19,613 m/s²
(64,347 ft/s²)

Frequency

Min.: 2,500 Hz

Max.: 26,000 Hz

Description

The ASC 66C1, manufactured by ASC Sensors, is a factory-calibrated, uni-axial accelerometer primarily based on a piezoresistive technology. Furthermore, this space-efficient device, in accordance with the specifications of SAE J211, features a flat-designed housing made from a hard anodized aluminum. Additionally, through its low-mass design, this device is best for testing light-weight structures. It also has a sensing element with integrated overload stops, thus making the silicon chip resistant to even the strongest shocks. Electrically configured as a Wheatstone bridge, the ASC 66C1 features a non-linearity over a vast array of frequency responses. Also, this product is equipped with a standard, heavy-duty 6m cable which provides an effortless mounting operation. This product can be obtained with all common sensor ID modules.
