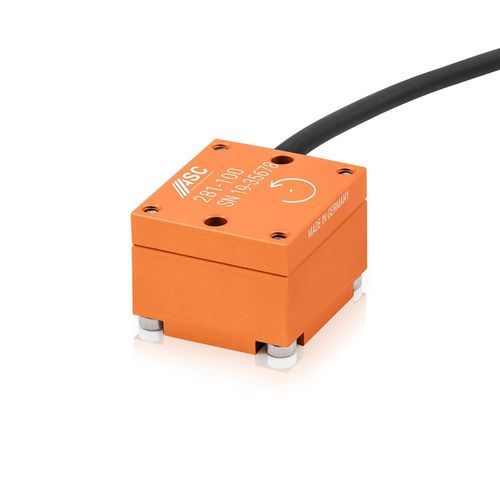

Single-axis gyroscope ASC 281

ruggedanalogMEMS

Overview
The ASC 281 is a uniaxial analog gyroscope based on MEMS vibrating ring sensor elements. Its micromechanical silicon design provides high insensitivity to external shock and vibration, making the sensor suitable for harsh environments. With performance comparable to fiber optic gyroscopes, the ASC 281 meets requirements for tactical-grade applications. The device features a lightweight aluminum housing and a detachable cable (configurable length and connectors). Typical applications include gyro compassing, attitude and heading reference systems (AHRS) and orientation of underwater remotely operated vehicles (ROVs).

Key features

• Sensor type: Analog gyroscope (uniaxial)
• Sensor technology: MEMS vibrating ring
• Number of sensitive directions: Uniaxial
• Output signal: Voltage
• Measurement ranges [°/s]: 10, 25, 100, 200, 400
• Temperature range: -40°C to +85°C
• Protection class: IP67 (housing description); IP65 (specification list)
• Housing material: Aluminum
• Mechanical / environmental: Detachable cable with configurable length and connectors; designed for low sensitivity to external impacts and vibrations
• Performance class: Tactical grade (high bias stability; suitable for precision navigation)

Applications

• Gyro compassing
• Attitude and Heading Reference Systems (AHRS)
• Orientation of underwater remotely operated vehicles (ROVs)

Technical specifications

• Sensor technology: MEMS vibrating ring
• Sensor type: Gyroscope (analog)
• Number of sensitive directions: Uniaxial
• Output signal: Voltage
• Measurement range (°/s): 10, 25, 100, 200, 400
• Temperature range: -40°C to +85°C
• Protection class: IP67 (description) / IP65 (spec list)
• Housing material: Aluminum
• Cable: Detachable, configurable length and connectors
• Performance: Tactical grade; high bias stability for precise navigation and orientation systems
