Uniaxial accelerometer ASC RAIL-1151LN
capacitiveMEMSvoltage output

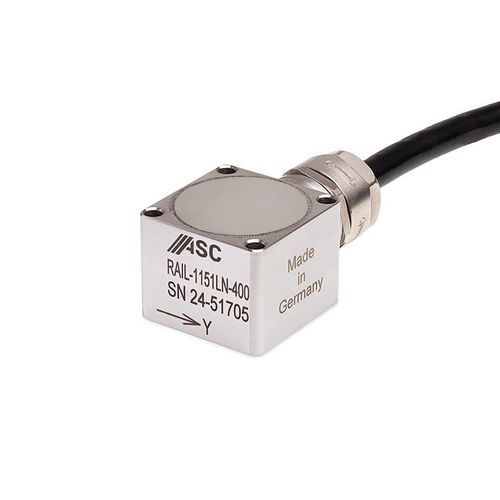

Uniaxial accelerometer - ASC RAIL-1151LN - ASC - capacitive / MEMS / voltage output
Uniaxial accelerometer - ASC RAIL-1151LN - ASC - capacitive / MEMS / voltage output
Add to favorites
Compare this product
Go to the ASC website for more information

Characteristics

Number of axes
uniaxial
Technology
capacitive, MEMS
Other characteristics
voltage output, analog, IP68, for railway applications, with analog output, with built-in electronics
Acceleration range

Min.: -3,923 m/s²
(-12,870 ft/s²)

Max.: 3,923 m/s²
(12,870 ft/s²)

Frequency

Min.: 0 Hz

Max.: 1,000 Hz

Description

Overview
The uniaxial accelerometer ASC RAIL-1151LN is based on MEMS capacitive sensing. Integrated electronics provide a differential analog voltage output (±4 V FSO) and a wide supply range (6–40 VDC), designed for railway applications and harsh environments.

Housing
The sensor features a non-flammable stainless-steel housing (V2A, material no. 1.4301) with protection class IP68. It is delivered with an integrated cable; cable length and connector type are configurable.

Standards and testing
Documented and tested according to EN 50155 to simplify integration in rolling-stock systems and reduce operator documentation effort.

Applications
The ASC RAIL housing enables reliable operation in harsh conditions. Typical uses include bogie stability testing, vehicle and component monitoring in rail transport, and inertial measurements in railway systems.

Product details
  • Sensor technology: MEMS capacitive
  • Axis: Uniaxial
  • Output signal: Differential analog voltage
  • Measurement ranges [g]: ±2, ±5, ±10, ±25, ±50, ±100, ±200, ±400

Environmental and mechanical
  • Temperature range: -40°C to +100°C
  • Protection class: IP68
  • Housing material: Stainless steel (V2A, 1.4301)
  • Cable: Integrated, configurable length and connector options

Electrical and performance
  • Supply voltage: 6 to 40 VDC
  • Output: Differential analog voltage ±4 V FSO
  • Noise density: 7 to 400 µg/√Hz
  • Frequency range (±5%): DC to 1000 Hz

Technical specifications
  • Model: ASC RAIL-1151LN
  • Type: Uniaxial capacitive accelerometer (analog)
  • Sensor technology: MEMS capacitive
  • Measurement ranges available: ±2 / ±5 / ±10 / ±25 / ±50 / ±100 / ±200 / ±400 g
  • Noise density: 7 to 400 µg/√Hz (depending on range)
  • Frequency response (±5%): DC to 1000 Hz
  • Output signal: Differential analog voltage, ±4 V FSO
  • Supply voltage: 6 to 40 VDC
  • Housing material: Stainless steel V2A (material no. 1.4301)
  • Ingress protection: IP68
  • Operating temperature range: -40°C to +100°C
  • Integrated cable with configurable length and connector options
  • Standards: Documented and tested according to EN 50155 (railway applications)
