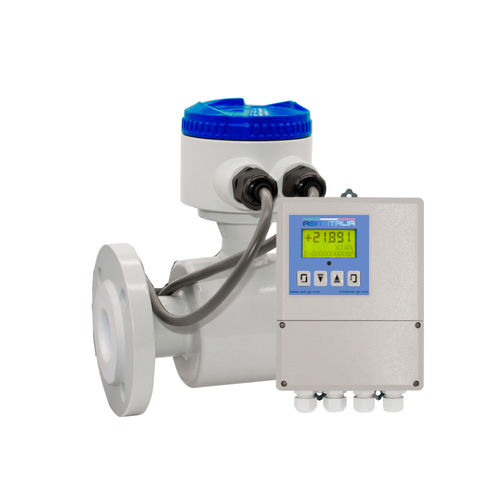

Electromagnetic flow meter AI.MF1000Rmagneticfor waterfor chemicals
Add to favorites
Compare this product
Characteristics
- Technology
- electromagnetic, magnetic
- Fluid
- for water, for chemicals, for wastewater, for conductive liquids
- Pipe diameter
- DN10 - 3/8", DN1200 - 48"
- Installation
- in-line, flange
- Material
- stainless steel, aluminum, PTFE, steel, PFA, titanium
- Communication
- 4-20 mA, RS485, analog output, with pulse output
- Supply voltage
- 24 Vdc, 12 Vdc, 110VAC, 240 VAC, 230VAC
- Protection level
- IP68
- Applications
- industrial
- Other characteristics
- programmable, with battery
- Volumetric flow rate
Max.: 61,072 m³/h
(2,156,737.3 ft³/h)Min.: 0.1 m³/h
(3.5 ft³/h)- Process temperature
Max.: 180 °C
(356 °F)Min.: -25 °C
(-13 °F)- Process pressure
40 bar
(580.15 psi)
Description
Model AI.MF1000R
Electromagnetic induction flowmeter
Suitable for conductive fluids
Size from DN 10. To DN 2200
Flanged / UNI-ISO-ANSI threaded
Electrodes in SS316L-Hastelloy C-Titanium-Monel-Tantalum-Tungsten
Internal lining in FEP-Rubber-Polyurethane
Carbon steel / SS304 flanges
Sensor body in aluminum / carbon steel / SS304
Separate electronic version
Power supply 100-240VAC / 20-36 Vdc / Battery
Available outputs: Analogue / pulse / Frequency / Profibus / HART / GPRS / MODBUS
