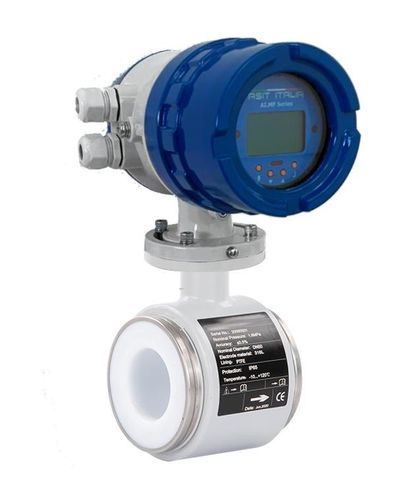

Magnetic flow meter AI.MF2000.C

volumefor waterfor chemicals

The AI.MF Series electromagnetic flow meter from ASIT Italia is the ultimate professional instrument for the precise measurement of conductive liquids. Thanks to the absence of moving parts, it guarantees zero maintenance and zero pressure drop in the system, making it ideal for applications ranging from water treatment to the management of aggressive or acidic liquids.

Why choose the AI.MF Series?
Excellent Precision: Standard accuracy of ±0.5%, with high-precision options up to ±1.5%.
Maximum Versatility: Available in a Compact Wafer version.
Premium Materials: Wide selection of coatings (PTFE, PFA, Neoprene, etc.) and electrodes (316L steel, Hastelloy, titanium, tantalum) to resist any chemical.
Drinking Water Certification: Approved pursuant to Ministerial Decree 174/2004 for use in systems intended for human consumption.

Main Technical Features
Diameter Range: From DN3 to DN3000.
Liquid Conductivity: > 5 μS/cm.
Fluid Temperature: From -20°C to +150°C.
Outputs and Communication: 4-20mA, Pulse, Frequency, RS485 Modbus RTU, HART protocol.
Display: 128x128 backlit graphic LCD with 4 programming keys.
Protection Rating: IP65.
Safety: Available in ATEX Exd IIB T6 Gb version for potentially explosive atmospheres.

Fields of Application
Water networks and drinking water distribution.
Wastewater and industrial water treatment.
Chemical and pharmaceutical industries (aggressive and corrosive liquids).
Water collection and supply systems.

Note:
Integrated diagnostics include empty pipe detection and bidirectional flow measurement, ensuring complete process control under all conditions.
