Venturi flow meter AI.FCVvolumefor liquidshorizontal
Add to favorites
Compare this product
Characteristics
- Technology
- Venturi
- Type
- volume
- Fluid
- for liquids
- Installation
- in-line, insertion, horizontal
- Material
- polypropylene
- Applications
- for the petrochemical industry, industrial, for the pharmaceutical industry, sewage sludge, for the food industry, for low flow rates, for water treatment, for the beverage industry, for hydraulic applications, irrigation, for pumping applications, for filling applications, for square ducts
- Other characteristics
- open-channel, maintenance-free
- Volumetric flow rate
Min.: 1 m³/h
(35.3147 ft³/h)Max.: 2,250 m³/h
(79,458.0001 ft³/h)
Description

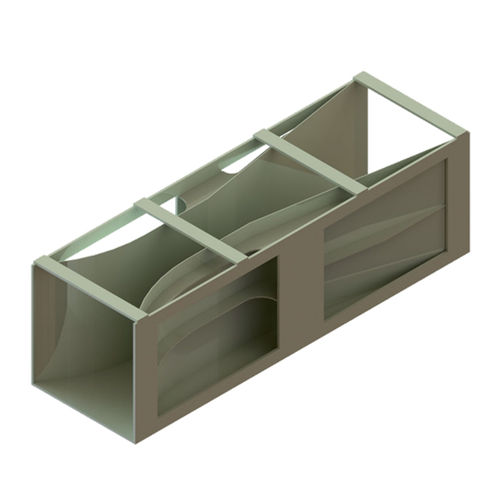

The AI.FCV Series channels are prefabricated elements specifically designed for flow measurement in rectangular open channels. Made entirely of polypropylene (PP), they offer an ideal combination of structural strength and chemical resistance, making them perfect for municipal and industrial water applications.
Why choose the AI.FCV Series?
The Venturi system is renowned for its ability to generate precise flow measurement with minimal permanent pressure drop. The polypropylene construction ensures a smooth surface that prevents sediment buildup, maintaining data accuracy over time even with loaded fluids.
Main Features
Inert Material: 100% polypropylene (PP) construction for excellent resistance to chemicals and corrosion.
Wide Operating Range: Available in 8 standard sizes (FCV01 to FCV08) to cover flow rates from 1 m³/h up to 2,250 m³/h.
Hydraulic Precision: Optimized profile to ensure the critical flow regime required for unambiguous measurement of the water level.
Easy Installation: Designed for direct insertion into rectangular channels, with larger models (FCV06-08) equipped with specific fittings for maximum hydraulic stability.
Dimensional Versatility: Variable lengths from 480 mm to 2,500 mm to adapt to any existing infrastructure.
Technical Specifications (Load Capacity and Dimensional Data)
FCV01 / 1 m³/h-50 m³/h / 480 x 150 x 270 mm
FCV02 / 2 m³/h-55 m³/h / 639 x 200 x 240 mm
FCV03 / 3 m³/h-150 m³/h / 958 x 300 x 360 mm
FCV04 / 10 m³/h-310 m³/h / 1278 x 400 x 480 mm
FCV05 / 20 m³/h-500 m³/h / 1598 x 500 x 600 mm
FCV06 / 25 m³/h-850 m³/h / 1500 x 600 x 720 mm
FCV07 / 50 m³/h - 1400 m³/h / 2000 x 1000 x 1000 mm
FCV08 / 60 m³/h - 2250 m³/h / 2500 x 1000 x 1000 mm
Installation Tips
For correct measurement of the water level, we recommend positioning the level sensor (ultrasonic or radar) at a distance equal to 4 times the width of the groove (b0) from the start of the restriction, ensuring a 90° perpendicularity to the water surface.
Special Options:
In addition to standard polypropylene, special materials (Code X) or complete kits with mounting accessories are available upon request.
Why choose the AI.FCV Series?
The Venturi system is renowned for its ability to generate precise flow measurement with minimal permanent pressure drop. The polypropylene construction ensures a smooth surface that prevents sediment buildup, maintaining data accuracy over time even with loaded fluids.
Main Features
Inert Material: 100% polypropylene (PP) construction for excellent resistance to chemicals and corrosion.
Wide Operating Range: Available in 8 standard sizes (FCV01 to FCV08) to cover flow rates from 1 m³/h up to 2,250 m³/h.
Hydraulic Precision: Optimized profile to ensure the critical flow regime required for unambiguous measurement of the water level.
Easy Installation: Designed for direct insertion into rectangular channels, with larger models (FCV06-08) equipped with specific fittings for maximum hydraulic stability.
Dimensional Versatility: Variable lengths from 480 mm to 2,500 mm to adapt to any existing infrastructure.
Technical Specifications (Load Capacity and Dimensional Data)
FCV01 / 1 m³/h-50 m³/h / 480 x 150 x 270 mm
FCV02 / 2 m³/h-55 m³/h / 639 x 200 x 240 mm
FCV03 / 3 m³/h-150 m³/h / 958 x 300 x 360 mm
FCV04 / 10 m³/h-310 m³/h / 1278 x 400 x 480 mm
FCV05 / 20 m³/h-500 m³/h / 1598 x 500 x 600 mm
FCV06 / 25 m³/h-850 m³/h / 1500 x 600 x 720 mm
FCV07 / 50 m³/h - 1400 m³/h / 2000 x 1000 x 1000 mm
FCV08 / 60 m³/h - 2250 m³/h / 2500 x 1000 x 1000 mm
Installation Tips
For correct measurement of the water level, we recommend positioning the level sensor (ultrasonic or radar) at a distance equal to 4 times the width of the groove (b0) from the start of the restriction, ensuring a 90° perpendicularity to the water surface.
Special Options:
In addition to standard polypropylene, special materials (Code X) or complete kits with mounting accessories are available upon request.
