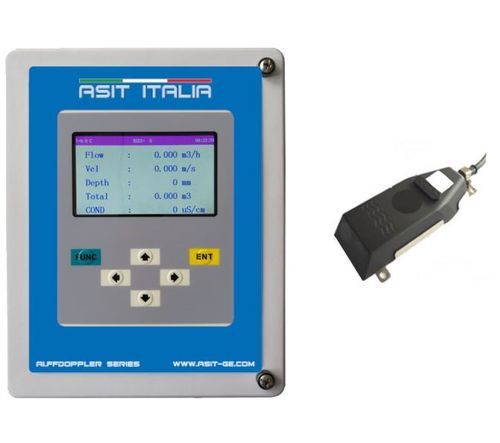

Doppler ultrasonic flow meter AI.FFDoppler.CAvolumefor sludgefor water
Add to favorites
Compare this product
Characteristics
- Technology
- Doppler ultrasonic
- Type
- volume
- Fluid
- for water, for wastewater, rainwater, for sludge, for heavy liquids
- Installation
- wall-mounted, suspended
- Material
- stainless steel
- Communication
- 4-20 mA, RS485, Modbus, analog output, digital output
- Supply voltage
- 24VDC, 220VAC
- Protection level
- IP68, IP66
- Applications
- for water treatment, for low flow rates, for high flow rates, for hydraulic applications, for harsh environments, for marine applications, for environmental analysis, for tanks, for partially-filled pipes, for square ducts
- Other characteristics
- two-sensor, compact, precision, with LCD display, electronic, bi-directional, open-channel, with battery, with indicator-totalizer, self-powered, with integrated pressure regulator
- Process temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)
Description
The AI.FFdoppler.CA-W system is the ultimate professional solution for flow measurement in open channels, rivers, and partially filled pipes. Thanks to advanced ultrasonic technology and the integrated ULTRAFLOW sensor, this instrument offers unparalleled accuracy even in complex hydraulic conditions.
Why choose the AI.FFdoppler.CA-W series?
Unlike traditional meters, this system combines a dual measurement principle (pressure and velocity) in a single compact body, ensuring reliable data for calculating instantaneous and total flow rate.
Main Features
Multiparametric Analysis: Simultaneously monitors velocity, head, conductivity, and water temperature.
Installation Versatility: Ideal for pipes from 200 mm up to 10 meters wide. Works on rectangular, triangular, circular, or irregularly shaped channels (up to 20 linearization points).
Extreme Precision: Bidirectional velocity range from 0.02 mm/s to 10 m/s with 1% accuracy.
Industrial Robustness: IP68-rated sensor sealed in epoxy resin with AISI 316L stainless steel bracket.
Advanced Data Management: 4.5" LCD display, integrated data logger, and 4-20mA/RS485 Modbus outputs for easy integration with PLC or SCADA systems.
Technical Specifications
Applications: Open channels, rivers, partially filled pipes
(200-10,000 mm)
Depth Range: Up to 10 meters (hydrostatic sensor)
Power Supply: 220VAC, 24VDC, or Solar Panel (portable version)
Outputs: 4-20mA, RS485 (Modbus RTU), Pulse
Cloud Options: Remote monitoring interface available
Available Versions
AI.FFdopplerCA-W (Wall Mount): Fixed electronic unit for wall mounting, ideal for continuous monitoring in treatment plants or sewer networks
AI.FFdoppler.CA-P (Portable): Ultra-resistant case version with rechargeable battery, perfect for temporary measurement campaigns or field checks
Why choose the AI.FFdoppler.CA-W series?
Unlike traditional meters, this system combines a dual measurement principle (pressure and velocity) in a single compact body, ensuring reliable data for calculating instantaneous and total flow rate.
Main Features
Multiparametric Analysis: Simultaneously monitors velocity, head, conductivity, and water temperature.
Installation Versatility: Ideal for pipes from 200 mm up to 10 meters wide. Works on rectangular, triangular, circular, or irregularly shaped channels (up to 20 linearization points).
Extreme Precision: Bidirectional velocity range from 0.02 mm/s to 10 m/s with 1% accuracy.
Industrial Robustness: IP68-rated sensor sealed in epoxy resin with AISI 316L stainless steel bracket.
Advanced Data Management: 4.5" LCD display, integrated data logger, and 4-20mA/RS485 Modbus outputs for easy integration with PLC or SCADA systems.
Technical Specifications
Applications: Open channels, rivers, partially filled pipes
(200-10,000 mm)
Depth Range: Up to 10 meters (hydrostatic sensor)
Power Supply: 220VAC, 24VDC, or Solar Panel (portable version)
Outputs: 4-20mA, RS485 (Modbus RTU), Pulse
Cloud Options: Remote monitoring interface available
Available Versions
AI.FFdopplerCA-W (Wall Mount): Fixed electronic unit for wall mounting, ideal for continuous monitoring in treatment plants or sewer networks
AI.FFdoppler.CA-P (Portable): Ultra-resistant case version with rechargeable battery, perfect for temporary measurement campaigns or field checks
