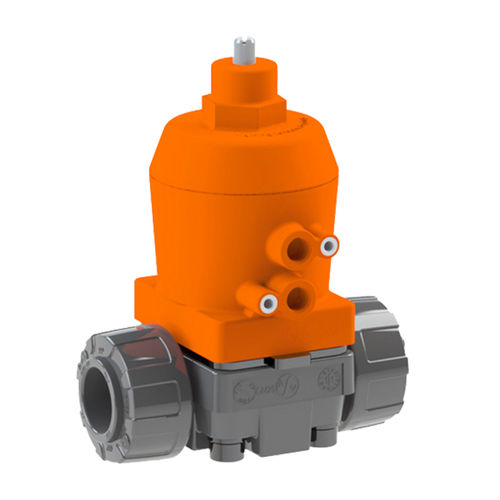

Piston valve MV 309pneumaticfor chemical productsPTFE
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Operation
- pneumatic
- Media
- for chemical products
- Body
- PTFE, EPDM, PVC-U, PP, medium, PVDF
- Other characteristics
- standard, compact
- DN
Max.: 32 mm
(1.26 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 6 bar
(87 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -30 °C
(-22 °F)- Flow rate
Max.: 500 l/min
(132.09 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
compact piston drive
medium pressure of up to 10 bar with EPDM and
medium pressure of up to 6 bar with PTFE (EPDM)
visual position indicator NC, NO, DA
NAMUR-compliant air connections
resistant to contaminated medium
market standard installation length
Catalogs
Diaphragm Valve MV 309
8 Pages
