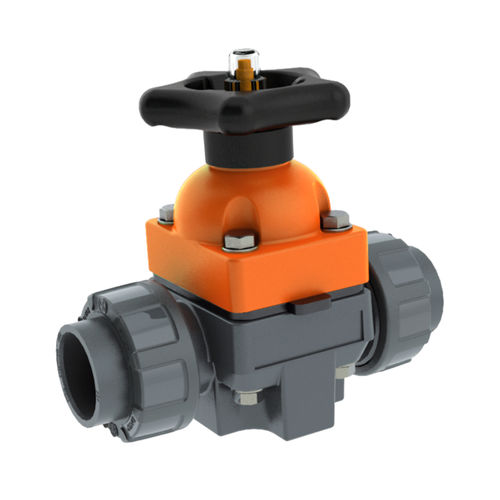

Diaphragm valve MV 310with handwheelpneumatically-operatedcontrol
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- with handwheel, pneumatically-operated
- Function
- control
- Media
- for chemical products
- Body
- PVC-U, PP, PVDF
- Other characteristics
- for aggressive media
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 6 bar
(87 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -30 °C
(-22 °F)- Flow rate
Max.: 5,000 l/min
(1,320.86 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
Material sealing element (in contact with medium):
EPDM | FPM
reliable and economical
good control characteristics
high kv value
visual position indicator
