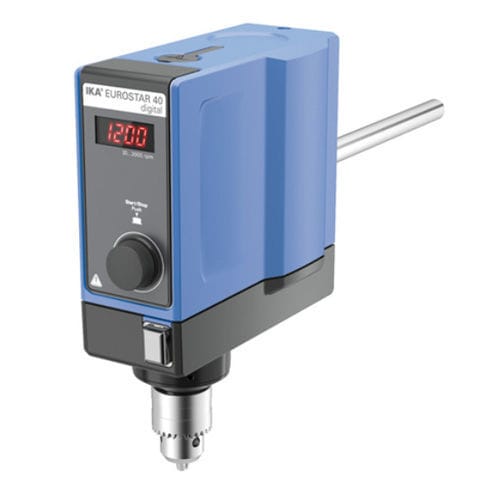

Overhead laboratory stirrer IKA Eurostar 40

digitalshaftLED

The IKA Eurostar 40 Digital overhead stirrer: this is a great universal laboratory stirrer that is suited for simple stirring tasks for quantities up to 25L (H20). The Eurostar 40 Digital automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 – 2000 rpm. As with all IKA products, safety is key and integral safety circuits in this overhead stirrer ensures automatic cut-off in an anti-stall or overload situation. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. Key features include: Digital speed display Infinitely adjustable speed Push-through agitator shafts Overload protection Short-term overload operation Slim casing Quiet operation Error code display Technical Specifications Stirring quantity max. per stirring position (H2O) - 25 l Motor rating input - 118 W Motor rating output - 84 W Motor principle - Brushless DC Speed display - 7 segment LED Reversible direction of rotation - no Intermittent operation - no Viscosity max. - 30000 mPas Output max. at stirring shaft - 84 W Permissible ON time - 100 % Torque max. at stirring shaft - 40 Ncm Speed control - stepless Setting accuracy speed - 1 ±rpm Deviation of speed measurement n > 300rpm - 1 ±% Deviation of speed measurement n < 300rpm - 3 ±rpm Stirring element fastening - chuck Temperature display - no Chuck range min. diameter - 0.5 mm Chuck range max. diameter - 10 mm Hollow shaft, inner diameter - 11 mm Hollow shaft (push-through – when stopped) - yes Fastening on stand - extension arm
