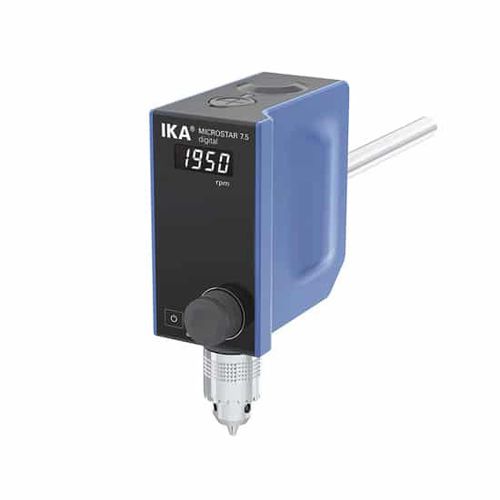

Overhead laboratory stirrer IKA MICROSTAR 7.5

digitalmotordigital

The IKA MICROSTAR 7.5 Digital is lightweight & space-saving with LED speed display. Technical Specifications Stirring quantity max. per stirring position (H2O) - 5 l Motor rating input - 32 W Motor rating output - 22 W Motor principle - Brushless DC Speed display - LED Viscosity max. - 4000 mPas Output max. at stirring shaft - 15.7 W Permissible ON time - 100 % Torque max. at stirring shaft - 7.5 Ncm Speed control - Turning knob Setting accuracy speed - 1 ±rpm Deviation of speed measurement n > 300rpm - 1 ±% Deviation of speed measurement n < 300rpm - 3 ±rpm Stirring element fastening - chuck Chuck range diameter - 0.5 – 8 mm Hollow shaft, inner diameter - 8.5 mm Hollow shaft (push-through – when stopped) - yes Fastening on stand - extension arm Extension arm diameter - 13 mm Extension arm length - 160 mm Nominal torque - 0.075 Nm Timer display - none Housing material - alu-cast coating / thermoplastic polymer Dimensions (W x H x D) - 60 x 173 x 126 mm Weight - 1.18 kg Permissible ambient temperature - 5 – 40 °C Permissible relative humidity - 80 % Protection class according to DIN EN 60529 - IP 54
