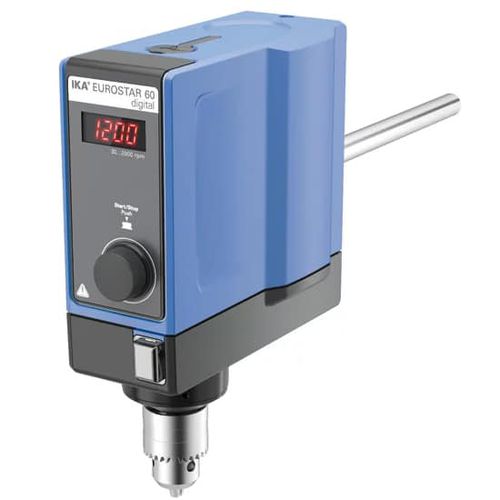

Overhead laboratory stirrer IKA EUROSTAR 60

digitalhousinghousing

The IKA EUROSTAR 60 Digital Overhead Stirrer is a powerful laboratory stirrer for quantities up to 40 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 – 2000 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. Key features include: Digital speed display Infinitely adjustable speed Push-through agitator shafts Overload protection Short-term overload operation Slim casing Quiet operation Error code display Technical Specifications Stirring quantity max. per stirring position (H2O) - 40 l Motor rating input - 176 W Motor rating output - 126 W Motor principle - Brushless DC Speed display - 7 segment LED Viscosity max. - 50000 mPas Output max. at stirring shaft - 126 W Permissible ON time - 100 % Torque max. at stirring shaft - 60 Ncm Speed control - stepless Setting accuracy speed - 1 ±rpm Deviation of speed measurement n > 300rpm - 1 ±% Deviation of speed measurement n < 300rpm - 3 ±rpm Stirring element fastening - chuck Chuck range diameter - 0.5 – 10 mm Hollow shaft, inner diameter - 11 mm Hollow shaft (push-through – when stopped) - yes Fastening on stand - extension arm Extension arm diameter - 16 mm Extension arm length - 220 mm Speed control - electronic
