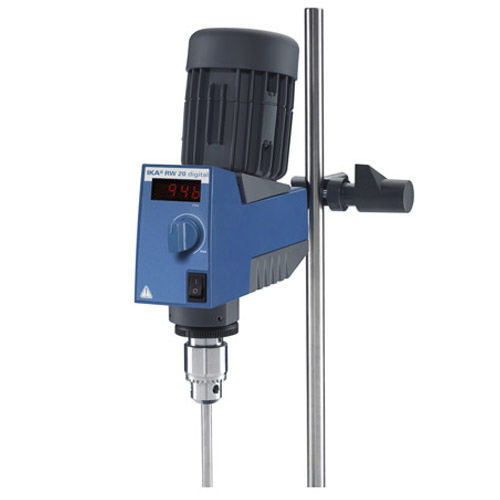

Overhead laboratory stirrer IKA RW 20

digitalshaftmeasurement

The IKA RW 20 Digital overhead stirrer is ideal for quantities of up to 15 litres of moderately viscous solutions. As one of IKA’s best-selling models, the key features to look out for are: Digital display Robust, slimline, ergonomic design Technical improvements on the trusted RW 20 series designs With constant power-drive Push-through agitator shafts (only when stationary) The RW20 is ideal for stirring quantities of up to 15 l (H2O) Technical Specifications Stirring quantity max. per stirring position (H2O) - 20 l Motor rating input - 70 W Motor rating output - 35 W Speed display - LED Viscosity max. - 10000 mPas Output max. at stirring shaft - 26 W Permissible ON time - 100 % Torque max. at stirring shaft - 150 Ncm Torque max. at stirring shaft at 60 1/min (overload) - 300 Ncm Torque max. at stirring shaft at 100 1/min - 150 Ncm Torque max. at stirring shaft at 1.000 1/min - 24 Ncm Speed range I (50 Hz) - 60 – 500 rpm Speed range II (50 Hz) - 240 – 2000 rpm Speed range I (60 Hz) - 72 – 600 rpm Speed range II (60 Hz) - 288 – 2400 rpm Speed control - stepless Setting accuracy speed - 1 ±rpm deviation of speed measurement - 30 ±rpm Stirring element fastening - chuck Temperature display - no Chuck range min. diameter - 0.5 mm Chuck range max. diameter - 10 mm Hollow shaft, inner diameter - 10.5 mm Hollow shaft (push-through – when stopped) - yes Fastening on stand - extension arm Extension arm diameter - 13 mm Extension arm length - 160 mm Torque display - no Nominal torque - 1.5 Nm Timer - no Dimensions (W x H x D) - 88 x 294 x 212 mm
