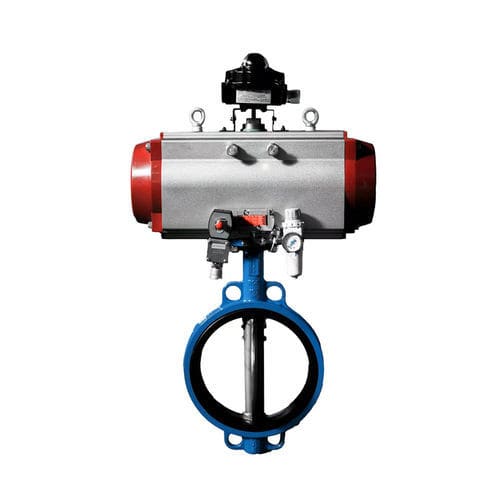

Butterfly valve BV-Cpneumatically-operatedelectrically-actuatedelectro-hydraulic
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- pneumatically-operated, electrically-actuated, electro-hydraulic, hydraulically-operated
- Function
- for control, regulating
- Media
- for hot water, for cold water, for oil, for gas, for air, for steam
- Body
- flange, modular
- Applications
- for pipelines, for the petroleum industry, for heating, for the gas industry, HVAC, for the paper industry, cryogenic, for the mining industry, refinery, power line
- Material
- steel, alloy, Hastelloy®, stainless steel, carbon steel
- Other characteristics
- ISO, emergency, ATEX
- DN
Max.: 40 in
Min.: 2 in
- Pressure
Max.: 2.2 MPa
Min.: 0.6 MPa
- Temperature
Max.: 120 °C
(248 °F)Min.: -29 °C
(-20 °F)
Description
body material: Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelly etc.) alloy steel
end connection: RF/RTJ/BW
Product Overview:
Athena pneumatic butterfly valves
- Butterfly valve with pneumatic actuator working principle, driven by rotating cylinder valve.
- The seal plate compacts O-ring isolated from the vacuum and atmosphere completely. Athena Pneumatic butterfly valve has advantages as quick opening and closing, easy installation, small size and long life cycles.
- The Pneumatic Butterfly Valves are provided in both single acting and double acting actuators.
- And the valve is located between pump and process chamber.
- Belong to the quarter turn valves
- Used for industrial and domestic applications.
- Main application will be fully isolated contaminating and aggressive gas in processes.
- Go with all kind of flow like hot water, cold water, HVAC, condenser, compressed air and vacuum.
