Electric manipulator

with gripping toolfor mechanical componentshandling

Overview
In modern industrial environments, handling heavy or bulky loads is a key challenge for safety, efficiency and ergonomics. Managing pump supports with varying sizes and geometries requires equipment that ensures load control, accurate positioning and reduced operator effort.

Operational challenges

• Handling loads with variable sizes and irregular geometries
• Maintaining positioning accuracy during assembly and placement
• Reducing operator physical effort and related injury risk

The solution

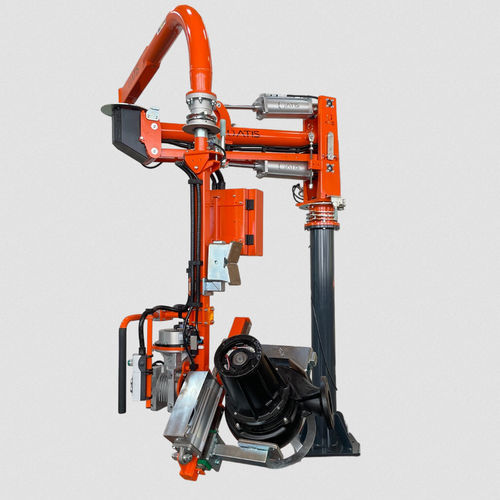

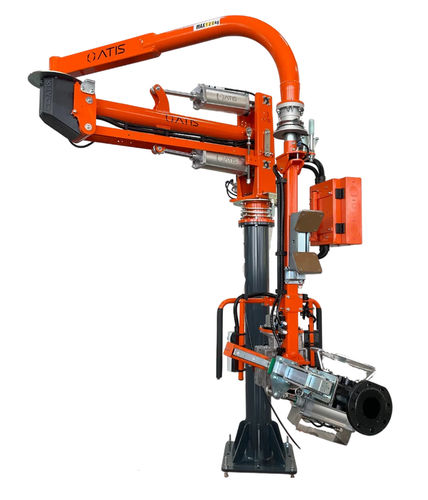

The gripping manipulator is an assisted handling system designed for gripping, lifting, rotating and precisely positioning pump supports and similar components. It enables safe handling of parts with variable characteristics and supports loads up to 120 kg with minimal operator effort.

Key features

• Adaptable gripping system: suitable for pump supports of different sizes and shapes
• Assisted lifting: enables handling of loads up to 120 kg with minimal effort
• Controlled rotation: ensures correct orientation of the component during handling
• Precise and repeatable positioning: ideal for assembly and placement operations

Benefits

• Workplace safety: reduced risk of injuries related to manual handling
• Improved ergonomics: less physical strain and increased operator comfort
• Production efficiency: faster handling times and smoother workflows
• Operational precision: full load control during delicate rotation and positioning tasks

Applications

• Pump and valve manufacturing and assembly
• Mechanical and automotive industries
• Metal fabrication and structural work
• Handling of components with irregular or variable shapes

Demonstration
A demonstration video shows the gripping manipulator lifting, rotating and positioning pump supports up to 120 kg, illustrating improvements in safety, ergonomics and efficiency on the production line.

Technical specifications

• Maximum handling capacity: 120 kg
• Intended operations: gripping, lifting, rotating, positioning
• Gripping system: adaptable to variable sizes and geometries
• Rotation control: controlled rotation for correct component orientation
• Positioning: precise and repeatable placement suitable for assembly
• Primary benefits: load control, reduced operator effort, improved safety and production efficiency
• Typical industries: pump/valve manufacturing, mechanical/automotive, metal fabrication
