•swivel rigid arms
•equipped with additional pneumatic cylinder
•completed with custom gripping system

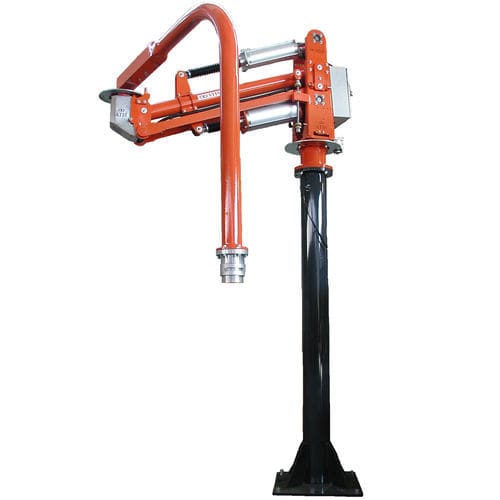

Pneumatic manipulator with swivel rigid arms, is the higher capacity model of ATISMIRUS 100. Developed with the same technical and structural characteristics, is equipped with additional pneumatic cylinder to obtain higher capacities and longer radiuses.
Also this manipulator can be integrated with a customized gripping tool to comply with customer's needs.
Transmission:through a parallelogram and terminal arm
Configuration:column mounted fixed to the floor, column mounted on self standing base plate, fixed overhead, overhead on rails
Net capacity:260 kg* (radius 2450 mm) / 537 lbs* (radius 8 ft 029/64 in)
Radius Max:3250 mm* (max load 180 kg) / 10 ft 761/64 in* (max load 397 lbs)
Radius Min:400 mm / 1 ft 33/4 in
Vertical stroke:1500 - 1750 - 2050 mm / 4 ft 111/16 in - 5 ft 857/64 in - 6 ft 845/64 in
Supply:from 0.5 to 0.8 MPa /from 73 to 116 psi of clean, dry and oil free compressed air
Column axle:360° continuous rotation
Intermediate axle:max 300° rotation
Noise level:<70 dB
