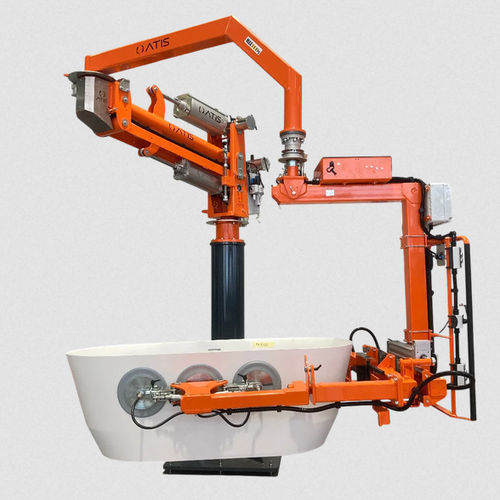

Pneumatic manipulator

with suction cupsanitary waresergonomic

Introduction
Handling bathtubs represents one of the most delicate challenges within production and logistics due to large dimensions, significant weight, and the need to preserve surface integrity. A pneumatic manipulator with a vacuum gripping system is an effective solution for lifting, handling and positioning bathtubs safely while improving operator working conditions.

Safe Vacuum Gripping for Delicate Surfaces
Thanks to a suction cup system specifically designed for this application, the manipulator ensures a stable and reliable grip without compromising the bathtub surface. Vacuum technology allows gripping forces to be evenly distributed, avoiding localized pressure points that could cause aesthetic or structural damage to the product.

• Safe and controlled gripping
• Protection of delicate surfaces
• High operational reliability
• Reduced risk of product damage
• Improved production process quality

Ergonomic Lifting and Reduced Physical Effort
The pneumatic manipulator compensates for the weight of the bathtub, enabling smooth and natural movements and reducing operator fatigue. The handling process is composed of sequential and controlled operations that facilitate safe manipulation of bulky loads.

• Gripping by means of suction cups
• Grip verification by means of a dedicated sensor
• Controlled lifting
• Product transfer
• Precise positioning
• Safe load release

Precision and Productivity in Industrial Handling
The system improves operational efficiency by enabling easy control of every movement, promoting accurate positioning and reducing handling times and errors. The combination of vacuum gripping and pneumatic manipulation is especially suitable for production lines in bathroom furnishings, ceramics and sanitary ware industries.

• Accurate positioning
• Reduced handling times
• Fewer operational errors
• Greater production continuity
• Increased productivity

The Ideal Solution for Handling Bathtubs
When bulky and delicate products need handling, the pneumatic manipulator with suction cups offers a solution that combines operational safety, ergonomics, precision, reliability and productivity.

• Operational safety
• Ergonomics
• Precision
• Reliability
• Productivity

Characteristics / Technical specifications

• Pneumatic manipulator designed for bathtub handling
• Vacuum gripping system with suction cups specifically sized for delicate surfaces
• Even distribution of gripping forces to avoid localized pressure points
• Grip verification via dedicated sensor
• Controlled lifting, transfer, positioning and safe release functions
• Improves workstation ergonomics and reduces operator fatigue
• Suitable for bathroom furnishing, ceramics and sanitary ware production lines
