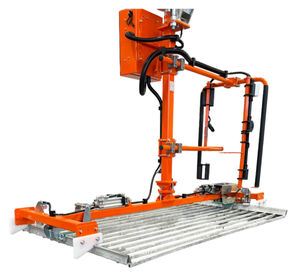

Manipulator with gripping tool

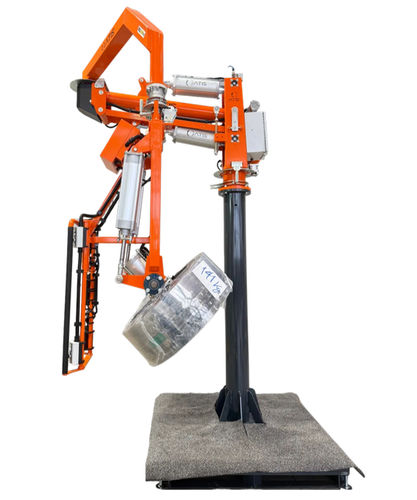

coilrotation 0°- 90°with tilter

Product overview
Roll handling is one of the most delicate operations in many industrial sectors. Whether dealing with paper, plastic film, textiles, composite materials or other wound products, lifting and positioning coils require solutions that ensure safety, ergonomics and precision. ATIS industrial manipulators assist operators throughout every stage of the handling process, from gripping to release, reducing physical effort and improving productivity.

Secure gripping system
One of the most important aspects of coil handling is load stability throughout all operations. Thanks to a dedicated gripping system, the manipulator allows the coil to be handled safely and in a controlled manner, preventing unwanted movements and ensuring maximum control during transport and positioning.

• Secure coil gripping
• Greater load stability
• Reduced risk of material damage
• Improved operator comfort
• Increased workplace safety

90° front tilt for precise positioning
The manipulator is equipped with a 90° front tilt system that allows the operator to orient the load with extreme precision and without effort. Continuous motion control maintains full control of the load throughout the tilting process.

• Move coils from vertical to horizontal and vice versa
• Loading machinery and production lines
• Positioning coils in hard-to-reach areas
• Assembly and packaging operations
• Reduced handling times

Quick mandrel (spindle) change
The manipulator integrates a quick-change spindle system that allows the gripping tool to be replaced quickly according to the dimensions or characteristics of the coils being handled, increasing flexibility and reducing setup times.

• Reduced setup times
• Greater production flexibility
• Rapid adaptation to different coil types
• Reduced machine downtime
• Increased operational efficiency

Ergonomics and safety in industrial handling
Using an industrial coil manipulator significantly reduces the physical effort required from operators. Lifting, rotating, tilting and positioning operations are carried out in a controlled manner, improving workstation ergonomics and reducing risks associated with manual load handling.

• Greater operational safety
• Reduced operator fatigue
• Improved productivity
• Precise and controlled handling
• Enhanced production process quality

Customized solutions
Manipulators can be configured with customized gripping systems, dedicated tilting functions and accessories designed to adapt to load characteristics and production processes, allowing a single solution to cover multiple applications.

Characteristics / Technical specifications

• Dedicated secure gripping system for coils
• 90° front tilt with continuous motion control for precise orientation
• Quick-change mandrel/spindle system for fast adaptation to different coils
• Designed to improve load stability and reduce material damage
• Improves operator ergonomics by reducing physical effort
• Reduces handling and setup times to increase production efficiency
• Configurable and customizable to suit specific industrial applications
