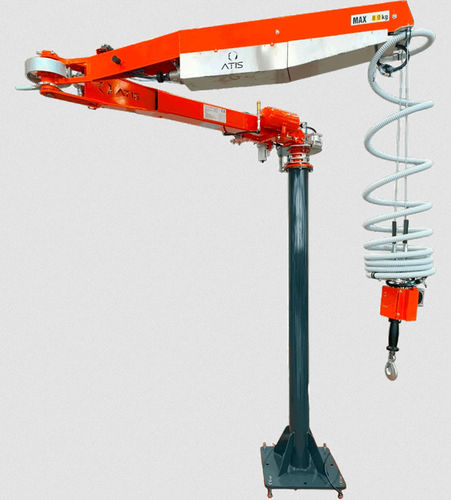

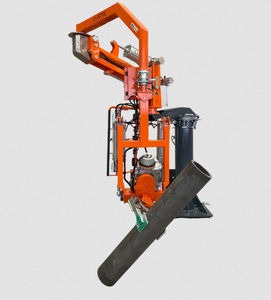

Pneumatic manipulator

with gripping toolhandlingoverhead rail-mounted

Overview
ATIS pneumatic manipulators deliver assisted lifting, controlled 180° rotation and high‑precision positioning for mechanical components. As zero‑gravity balancers and industrial lifters, they enable repeatable, safe and ergonomic handling across assembly, machining and storage operations, reducing operator strain and increasing process reliability.

Main functions

• Lifting and continuous control of the load
• Controlled 180° rotation for reorientation and flipping
• Precise positioning for assembly and insertion tasks
• Integration with custom gripping systems adapted to part geometry and weight

Key benefits

• Increased safety: constant control of the load during all handling phases
• Improved ergonomics: operators are relieved from supporting or rotating heavy parts
• High positioning accuracy: repeatable orientation and placement of complex components
• Productivity gains: reduced handling times and optimized cycle performance

Models

• ATISmirus: rigid‑arm manipulators providing strength and stability for off‑center loads up to 600 kg
• ATISacer: double‑rope manipulators for centered loads up to 150 kg, compact design with dual safety ropes
• ATISferax: lever manipulators, very lightweight and compact for confined spaces and high‑frequency cycles with low inertia
• ATISlinear: vertical sliding manipulators for large working areas or obstructed layouts, ceiling rail installation and high load capacity

Configurations and gripping systems
All models offer multiple construction variants and a wide range of options to match working radius, space constraints and cycle requirements. ATIS develops tailor‑made grippers and end‑of‑arm tooling to suit part geometry, surfaces and production line integration, ensuring optimal safety and cycle repeatability.

Technical specifications

• Available types: rigid arm, double‑rope, lever, vertical sliding
• Example capacities: ATISmirus up to 600 kg (off‑center); ATISacer up to 150 kg (centered)
• Functionalities: lifting, 180° rotation, precise positioning; zero‑gravity balancing technology
• Installation: floor‑mounted, overhead/ceiling rail (ATISlinear) or custom integration into automation
• Options: custom grippers, safety ropes, tailored stroke and travel, controls compatible with production systems
