Electric manipulator

with gripping toolfor paper rollsfor the paper industry

Overview

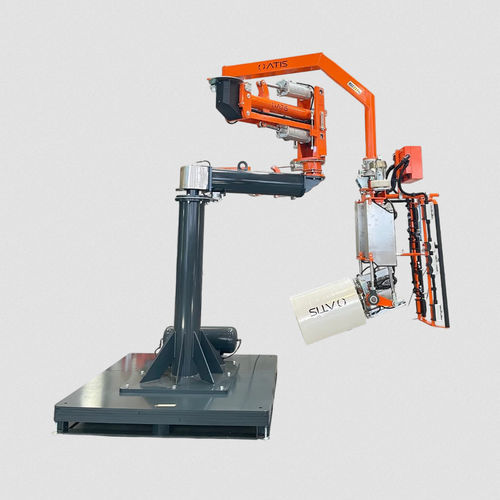

The manipulator with an expansion mandrel offers an ergonomic and reliable solution for lifting, rotating and positioning coils. It is designed to enable operators to handle heavy reels safely and with precision, reducing physical exertion and improving control.

How the manipulator with an expansion mandrel works
The system uses an expansion mandrel which is inserted into the central hole of the reel and secures it firmly from the inside.

• Lift the reel without exerting physical effort
• Tilt the load up to 90°
• Position the reel with the utmost precision
• Carry out the controlled release directly on the machine shaft

The benefits of ergonomic coil handling

• Greater safety at work: The internal expansion clamp ensures that the coil is securely held in place during handling, reducing the risk of unwanted movement and improving operator safety.
• Reduction in physical exertion: The manipulator makes it extremely easy to handle heavy reels, eliminating the need for manual handling and reducing operator fatigue.
• Precise positioning: The 90° tilt and balanced movement allow the coil to be aligned accurately during loading and unloading operations.
• Increased productivity: Faster, safer and more repeatable operations help to reduce machine downtime and improve the overall efficiency of the production line.

Safe release of the reel onto the machine shaft
The manipulator with an expansion mandrel is designed to ensure a gradual and controlled release directly onto the machine shaft, facilitating insertion and reducing the risk of impact, damage or misalignment. This enables quick and safe operation even where high precision is required.

Areas of application

• Paper and board industry
• Packaging and converting
• Production of plastic films
• Textile sector
• Metallurgical industry
• Winding and unwinding machines
• Cutting and rewinding lines
• Industrial printing presses

Characteristics / technical specifications

• Brand: ATIS
• Gripping system: internal expansion mandrel inserted into the reel core
• Tilting capability: up to 90°
• Primary functions: lifting, rotating, precise positioning, controlled release onto machine shaft
• Operator benefits: eliminates manual lifting, reduces fatigue, improves safety and repeatability
• Typical applications: paper, packaging/converting, plastic films, textiles, metallurgy, winding/unwinding, cutting/rewinding, printing
• Designed for gradual and controlled release to minimize impact, damage and misalignment
