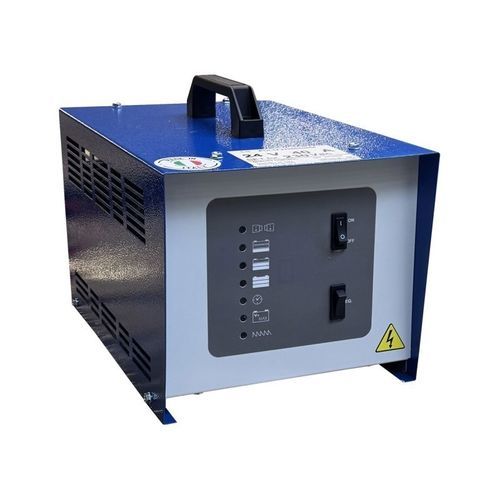

Portable battery charger POSEIDON

digitalmicroprocessor-controlled

Compact charger with seven LED control board for efficient charger - POSEIDON offers a range of extremely compact and handy chargers, equipped with microprocessor control with 7 LED display, which allows a simple representation of the state. It is an intuitive and robust charger with a high charging efficiency of 85%. (LCD option available) Specifications - Display of charge status with 7 LEDs - Very high efficiency over 85% and Power factor of 0.80 allow low energy consumption - ON/OFF switch for enable or disable the charge - External push button for programmable equalizing and weekend charge - Quick test for charger functional verification - Proportional charge function for shallow discharges - Maximum and minimum voltage control before charging starts - Maximum voltage control in charge - Final charging time that can be set to adapt the charge cycle to battery conditions - AutoStart with programmable delay - Serial interface for highly precise programming and calibration - Short circuit and reverse polarity protection - Design, testing and production of transformers carried out internally - Thermal protection on the power transformer to avoid over-temperature - IP20 intrusion protection - Conformal coating on the control card for moisture protection to grant high reliability - Excellent ventilation system for better cooling of the transformer - Working temperature 0 – 50°C Technical characteristics / specifications - Microprocessor control - 7 LED display - Charging efficiency: 85% - Power factor: 0.80 - IP20 protection - Operating temperature: 0 – 50°C
