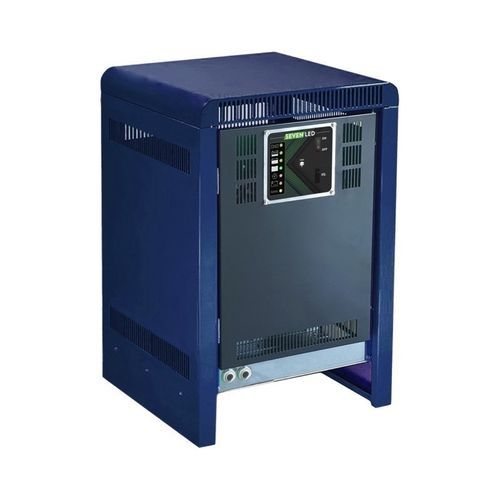

Wall-mount battery charger ZEUS

microprocessor-controlled

Complete range of very reliable chargers with simple and intuitive 7 LED interface ZEUS LED offers a complete range of extremely robust compact chargers, managed by a microprocessor control with 7 LED display. ZEUS LED is a charger suitable for every power and Mains supply need, it is extremely reliable, with a Wa charge profile and a charging efficiency of more than 90%. Specifications - Display of charge status with 7 LEDs - Very high efficiency over 90% and Power factor of 0.80 allow low energy consumption - ON/OFF switch for enable or disable the charge - External push button for programmable equalizing and weekend charge - Quick test for charger functional verification - Proportional charge function for shallow discharges - Maximum and minimum voltage control before charging starts - Maximum voltage control in charge - Final charging time that can be set to adapt the charge cycle to battery conditions - AutoStart with programmable delay - Serial interface for highly precise programming and calibration - Short circuit and reverse polarity protection - Design, testing and production of transformers carried out internally - Thermal protection on the power transformer to avoid over-temperature - IP20 intrusion protection - Conformal coating on the control card for moisture protection to grant high reliability - Excellent ventilation system for better cooling of the transformer - Working temperature 0 – 50°C Technical characteristics / specifications - Product type: Rectifier-charger - Model: ZEUS LED 160-250A - Display: 7 LED - Efficiency: >90% - Power factor: 0.80 - Protection: Short circuit, reverse polarity, thermal, IP20 - Operating temperature: 0 – 50°C
