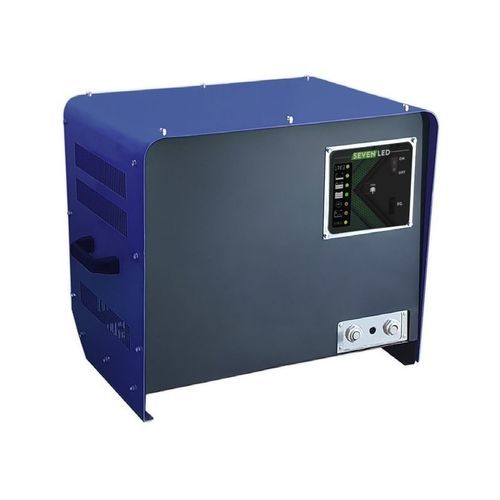

Fixed battery charger ATHENA

three-phasesingle-phasemicroprocessor-controlled

Compact charger with seven LED control board for efficient charging ATHENA LED offers a wide range of chargers, three-phase and single-phase, compact and easy to handle, managed by a microprocessor control board with 7 LED display, extremely simple and intuitive. ATHENA LED is an extremely handy and reliable charger, with a Wa charging profile and an efficiency greater than 90%. Specifications - Display of charge status with 7 LEDs - Very high efficiency over 90% and Power factor of 0.80, allow low energy consumption for charging - ON/OFF switch for enabling or disabling the charge - External button for programmable equalization and weekend charge - Quick test for charger functional verification - Proportional charge function for shallow discharges - Maximum and minimum voltage control before charging starts - Maximum voltage control during charge - Final charging time can be set to adapt the charge cycle to battery conditions - Autostart with programmable delay - Serial interface for highly precise programming and calibration - Short circuit and reverse polarity protection - Design, testing and production of transformers carried out internally - Thermal protection on the power transformer to avoid over-temperature - IP20 intrusion protection - Excellent ventilation system for better cooling of the transformer - Working temperature: 0 – 50°C Technical characteristics / specifications - Charging profile: Wa - Efficiency: >90% - Power factor: 0.80 - Display: 7 LEDs - Protection: Short circuit, reverse polarity, thermal, IP20 - Operating temperature: 0 – 50°C
