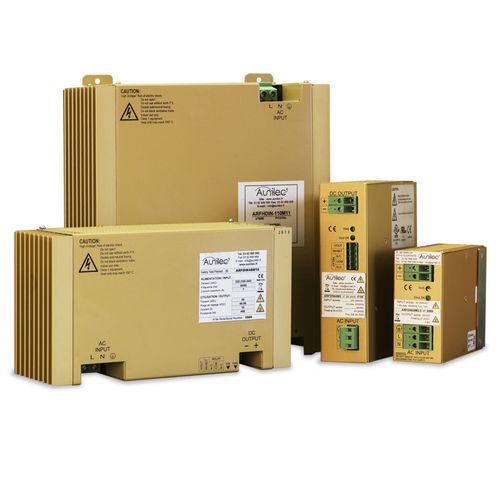

DIN rail power supply ARFDin

AC/DCsingle-outputregulated

The AFRDin range is a family of stabilized and regulated single voltage DC power supplies, especially designed for mounting on DIN rail. According to the model the input network can be 115 VAC, single phase 230 VAC, 230 VAC or 400 VAC three phase. The power factor correction (PFC) according EN61000- 3-2 Class A is also integrated. Compact and powerful, this series has the UL, C-UL and CE marking. This series is ideally suited for all electrical applications like electronic enclosures and the automation industry in general. Specifications - Frequency from 47 to 63Hz - This range is convertible into regulated battery charger and filtered on request - Output regulation: ± 2% - Residual ripple 83% - Equipped with non-return diodes (DC models) - Remote Alarm (G models) - Green LED signaling: presence output voltage - Input / Output: 3750 Vac - Input / ground: 1750 Vac - Output / ground 500Vdc - Input protection fuse, limiting the inrush current and RFI filter - Operating Temperature -10 to + 60 ° C
