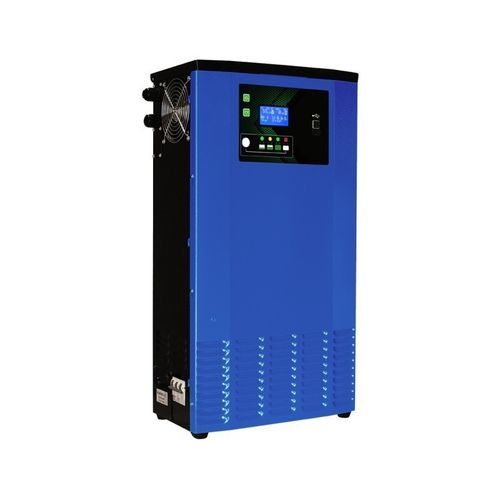

Wall-mount battery charger CH2

lead-acidAGMgel

A family of modular chargers with programmable charging profiles for every battery technology The CH2 is a family of three-phase, modular, high-frequency battery chargers, with programmable profiles, for any type of battery and ready for use with Lithium Ion thanks to its CAN bus communication. The modular system is easy to maintain. The Can Bus protocol can be customized to meet the specifications of the battery BMS. Specifications - Three-phase battery charger - High-Frequency Switching Technology: High-efficiency technology and new technical design for optimal thermal performance of the battery - Programmable via front panel or USB Type A/B port - Suitable for Lead-Acid Batteries, Sealed eGEL Traction, AGM, Lithium-Ion - CAN/CAN-OPEN communication for lithium batteries - High efficiency over 90% - Various power configurations available - Multi-current configuration - Charging curves customizable via software - Data and Graph Memory for the last 150 charging cycles - HF View software included - Modular system (3 or 4 configurable modules): Power up to 21 kW, up to 300A @ 48V, up to 200A @ 80V, up to 150A @ 96V - Programmable via USB type A/B port or via display - Graphic display Product type: Three-phase modular battery charger Programmable charging profiles CAN bus communication for Lithium Ion batteries High-frequency switching technology High efficiency (>90%) Customizable charging curves Data memory for 150 cycles Power: up to 21 kW Current: up to 300A @ 48V, 200A @ 80V, 150A @ 96V Compatible with Lead-Acid, eGEL, AGM, Lithium-Ion batteries
